Description

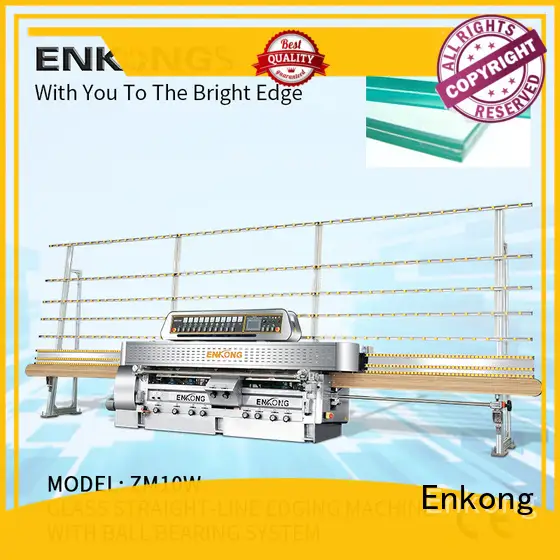

ZM10 W is suitable for processing straight-line edge & 45°arrises on glass.
Enkong Glass Machinery specialized in making high-quality glass machine, glass edging machine for global customers.
Enkong glass machinery factory direct supply1
Brand name:
Enkong
Place of origin:
Guangdong China
Certificate:
CE/ISO(CSA UL certificate can be customized according to customer requirement for the production)
Minimum order:
1 set
Price term:
FOB/CIF/C&F(optional)
Payment terms:
L/C, T/T
Package detail:
package with film
Delivery:
20-45days
Application Scope
Enkong's glass machinery is widely used in various scenes.Enkong always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
Product Comparison
Enkong's glass machinery is commonly praised in the market due to good materials, fine workmanship, reliable quality, and favorable price.Compared with products in the same category, glass machinery we produce is equipped with the following advantages.
1. glass machinery is made by material of glass straight line edging machine.
2. This product is strong and tough. It is sintered under very high temperature, which makes its physical properties to be optimized.
3. The product features remarkable responsiveness. Both of the insole and outsole contribute to reducing the impact of feet landing to protect the feet quickly.
4. The application of this product will help to further enhance the experience of the operators or deepen their know-how, so that they have a wide range of knowledge of the application of machinery and equipment.
/ General description
Description
A special design of the in-feed section for controlling the grinding amount of glass without adjusting each spindle individually.
Description
Indepent wool felt wheel and the cerium water recirculation system make the flat edge more shining.
Description
With ABB spindle motors and the conveyor system running on ball bearing units, this machine has a much stronger loading and delivering capacity, thus it is able to process mini piece and extremely thick piece with high precision and good water-proofing.
Description
Input and output conveyors adopt timing belt which can improve the stability of transmission.
Description
Speed is adjusted by frequency inverter; PLC with pneumatic polishing.
/ Technical Date
Technical Data
◆ Spindles: 10pcs
◆ Processing glass thickness: 3-25mm
◆ Angle of arris: 45°
◆ Min.size of glass: 40mm×40mm
◆ Processing speed: 0.5~5m/min
◆ Dimension: 7820×1400×2500mm
◆ Processing glass thickness: 3-25mm
◆ Angle of arris: 45°
◆ Min.size of glass: 40mm×40mm
◆ Processing speed: 0.5~5m/min
◆ Dimension: 7820×1400×2500mm
/ producy detials
Operation Condition
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
/ Wheels Disposal
6 spindles for the straight-line edge (adopt the independent wool felt wheel)
2 spindles for front and back arris each.
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features
1. Guangdong Enkong Machinery Co.,Ltd. is an experienced and reliable company in designing, manufacturing and distributing cost-effective products such as glass straight line edging machine.
2. Guangdong Enkong Machinery Co.,Ltd. has a sound management system and abundant production experience.
3. The companies that we work with have the goal of being the top manufacturer in the glass machinery industry. Call now! Guangdong Enkong Machinery Co.,Ltd. takes glass straight line edging machine as its overall strategies. Call now! Guangdong Enkong Machinery Co.,Ltd. sincerely hold the tenet of glass straight line edging machine in mind when conducting business. Call now!
