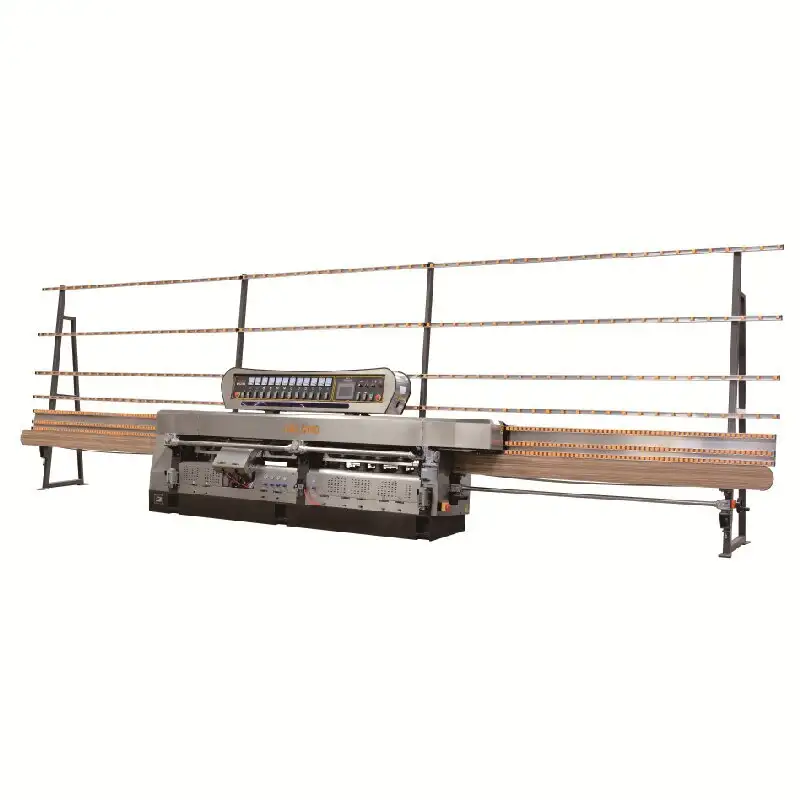

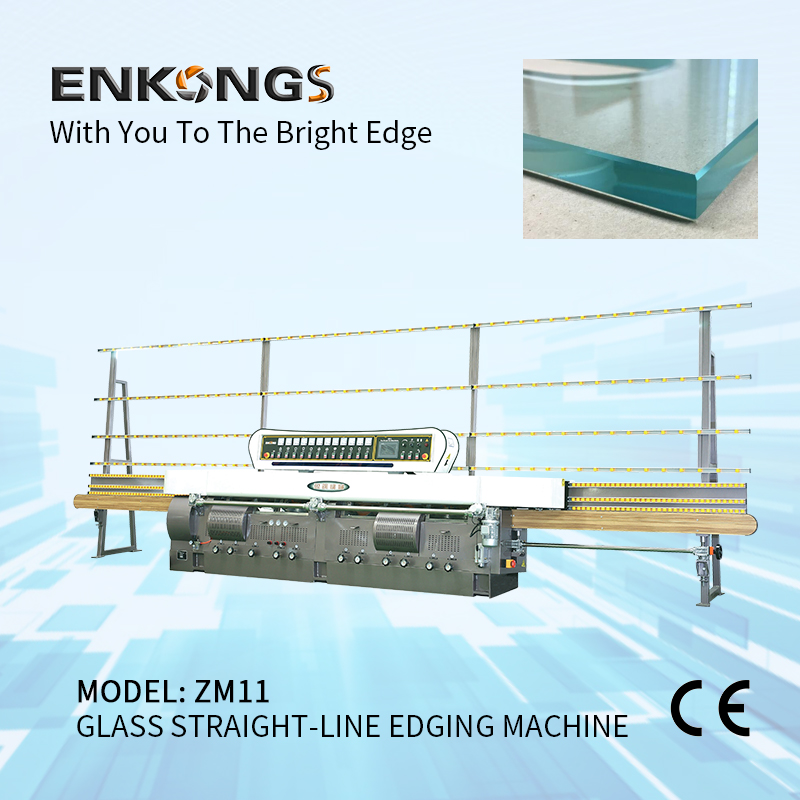

Glass straight-line edging machine ZM11

ZM11 Glass Straight-line Edging Machine Description

The ZM11 Glass Straight-line Edging Machine by Enkong is a high-performance solution designed for precision edging of glass panels. This machine is engineered to deliver straight-line edging with exceptional accuracy and efficiency. With its advanced features and robust construction, it provides reliable performance for a wide range of glass processing applications.

Features - ZM11 Glass Straight-line Edging Machine

• Precision straight-line edging for high-quality glass finishing

• Multiple spindles for efficient processing of glass panels

• Variable speed control for versatile operation

• Advanced PLC system for easy operation and programming

• High-quality diamond wheels for long-lasting performance

• Integrated water circulation system for cooling and lubrication

• Sturdy construction for stability and durability

• (Independent wool felt wheel + the cerium oxide ) make the flat edge more shining.

• Input and output conveyor adopt timing belt which can improve the transmission precision.

• When adjusting different processing thicknesses, the former arris grinding head can move  simultaneously along with the front beam.

• The electrical elements with famous ABB/ Schneider brand.

• All mechanical feeding parts with lubricating system.

ZM11 Glass Straight-line Edging Machine Application

The ZM11 Glass Straight-line Edging Machine is suitable for various glass processing applications, including architectural glass, automotive glass, furniture glass, and decorative glass. It is ideal for edging straight-line profiles on glass panels used in windows, doors, mirrors, and other glass products. Whether it's for large-scale production or custom projects, this machine delivers consistent and precise results to meet the demands of modern glass manufacturing.

ZM11 is suitable for processing straight-line edge & 45 arrises on glass.

Rough, fine grinding and polishing on glass flat edge and arrises can be finished at one time.

A special design of the in-feed section for controlling the grinding amount of glass without adjusting each spindle individually.

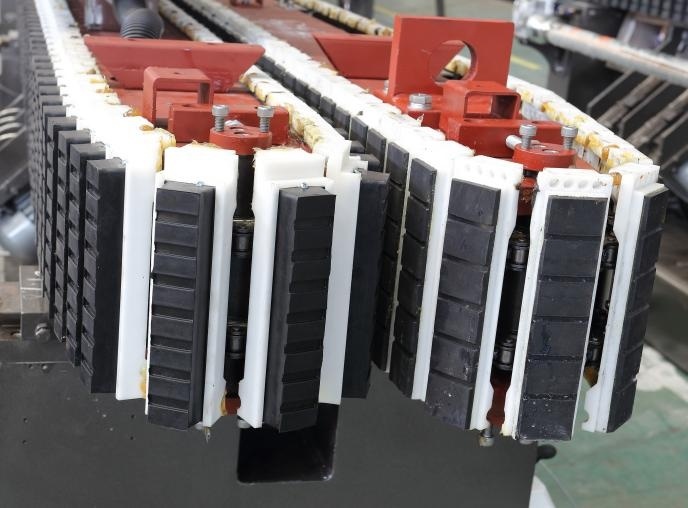

Input and output conveyors adopt timing belt which can improve the stability of transmission.

Speed is adjusted by frequency inverter or stepless speed variator.

PLC with pneumatic polishing.

Technical Date

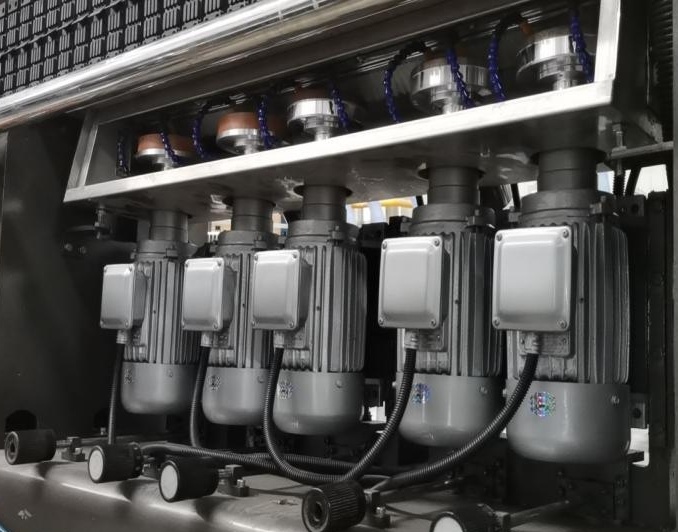

◆ Spindles: 11 pcs
◆ Processing glass thickness: 3-25mm
◆ Angle of arris: 45 degree
◆ Min.size of glass: 80mm*80mm
◆ Processing speed: 0.5-4.5 m/mins
◆Installed power: 22 KW
◆Dimension: 7920×1400×2500mm

Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃

7 for the straight-line edge, 2 for front arris and 2 for back arris.

★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
