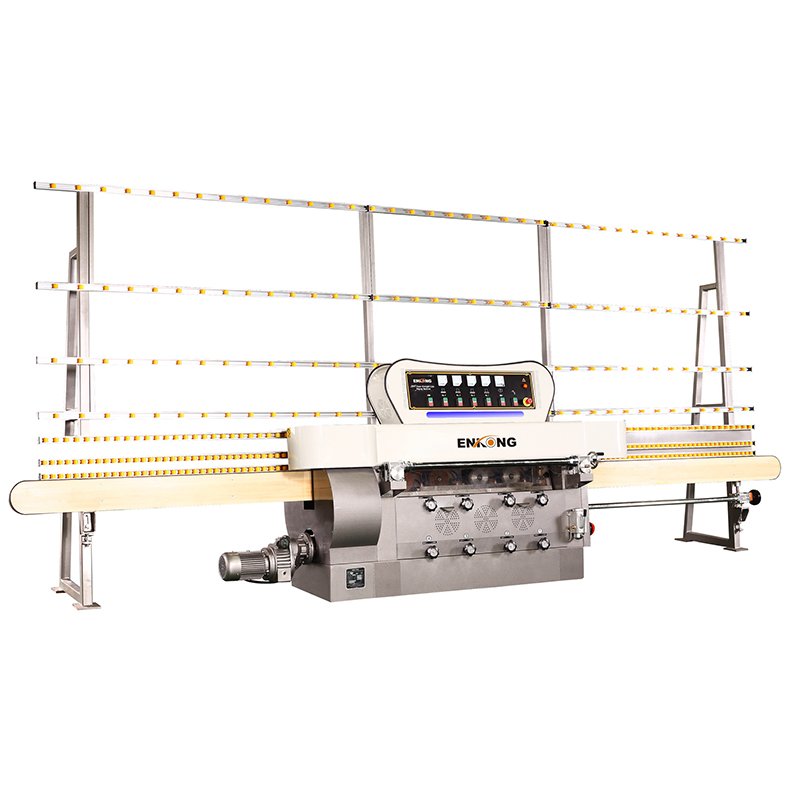

Glass straight-line pencil edging machine ZM4Y

Product Description - ZM4Y Glass Straight-line Pencil Edging Machine

The Glass Straight-line Pencil Edging Machine ZM4Y by Enkong is a specialized solution designed for precision pencil edging of glass panels. This machine is engineered to deliver precise and consistent edging results, creating smooth pencil edges on glass with exceptional accuracy. With its advanced features and reliable performance, it meets the high standards of glass processing applications.

Product Features - ZM4Y Glass Straight-line Pencil Edging Machine

• Precision pencil edging for smooth and uniform glass edges

• Multiple diamond wheels for efficient processing of glass panels

• Variable speed control for flexible operation

• Advanced PLC system for easy programming and operation

• Integrated water circulation system for cooling and lubrication

• Sturdy construction for stability and durability

• Compact design for space-saving and efficient workflow

ZM4YGlass Straight-line Pencil Edging Machine Application

The Glass Straight-line Pencil Edging Machine ZM4Y is suitable for various glass processing applications, including architectural glass, automotive glass, furniture glass, and decorative glass. It is ideal for creating pencil edges on glass panels used in windows, doors, mirrors, and other glass products. Whether it's for large-scale production or custom projects, this machine delivers consistent and precise results to meet the demands of modern glass manufacturing.

ZM4Y can process pencil/OG edging edges of different glass thickness with different shape wheels.

Rough grinding, fine grinding and polishing of the pencil edge can be finished at one time.

Same thickness of glass sheet can be process continually.

It is suitable for rough peocessing before tempering and other further processing.

Technical Date

◆ Spindles: 4pcs
◆ Processing glass thickness: 3-19mm
◆ Min.size of glass: 80mm×80mm
◆Processing speed: 0.5~5m/min
◆ Dimension: 5800x1100×2500mm

Power supply: AC220V, 380V, 415V ±10%  3φ  50Hz/60Hz±2%
Environment: Temperature: 1~40℃

6 spindles for the straight-line edge (adopt the independent wool felt wheel)
2 spindles for front and back arris each.

4 spindles for the straight-line pencil edge.

★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
