Product Description
The ENKONG SM 20 Glass Straight-Line Double Edging Machine represents the pinnacle of precision and efficiency in glass processing. Designed for double-sided edging of glass panels, this advanced machinery ensures impeccable results with unparalleled speed and accuracy. Whether you're working with standard float glass or specialized glass types, the SM 20 delivers superior double edging performance, making it an essential asset for glass manufacturers and processors.
Product Features
Double Edging Capability: Specialized machinery for simultaneous double-sided edging of glass panels, maximizing productivity and efficiency in glass processing.
High-Speed Processing: Equipped with powerful motors and advanced grinding mechanisms, the SM 20 achieves rapid processing speeds without compromising on precision.
Adjustable Parameters: Offers flexibility to adjust edging parameters such as speed, angle, and thickness to accommodate various glass specifications and processing requirements.
Precision Control System: Features an advanced control system for precise monitoring and adjustment of edging parameters, ensuring consistent results with minimal errors.
Integrated Cooling System: Includes a built-in cooling system for effective cooling and lubrication of the grinding wheels, enhancing performance and prolonging their lifespan.
User-Friendly Interface: Designed with an intuitive control panel and easy-to-use controls for seamless operation and monitoring of machine functions.
Durable Construction: Constructed with high-quality materials and precision-engineered components for durability and reliability in demanding industrial environments.
Application
The ENKONG SM 20 Glass Straight-Line Double Edging Machine is suitable for a wide range of glass processing applications, including architectural glass, mirrors, furniture, and automotive glass. Whether you're producing glass doors, windows, or decorative panels, this versatile machine delivers exceptional double edging results, enhancing the quality and aesthetics of glass products.

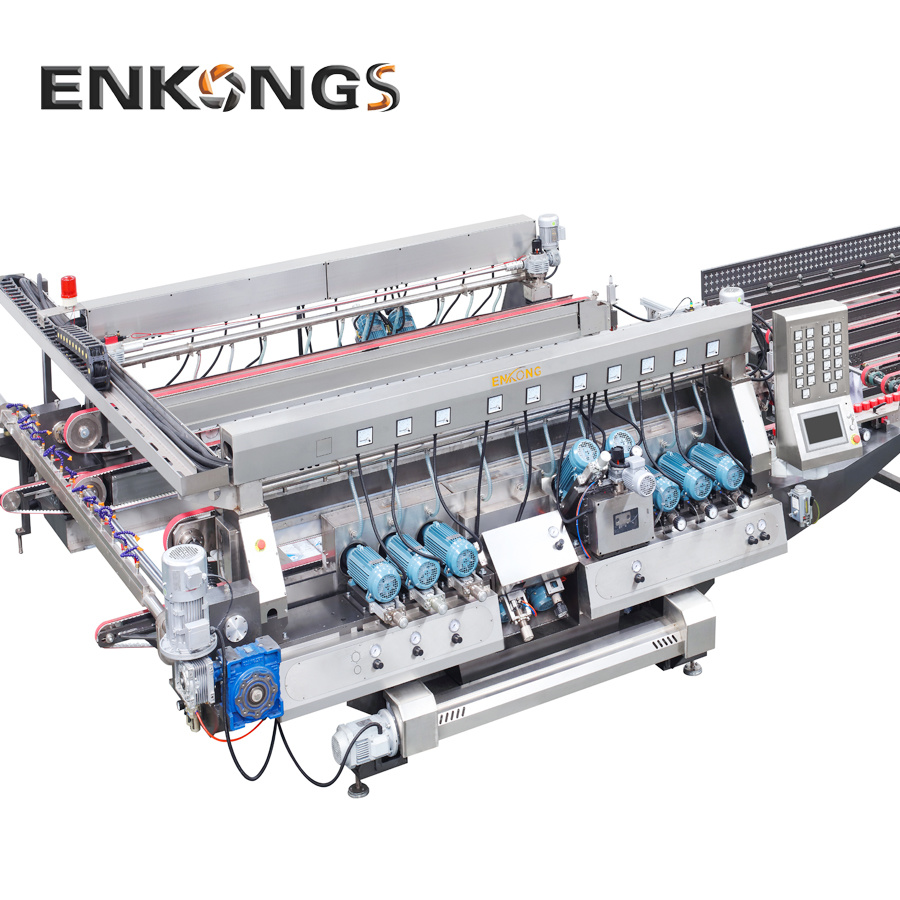

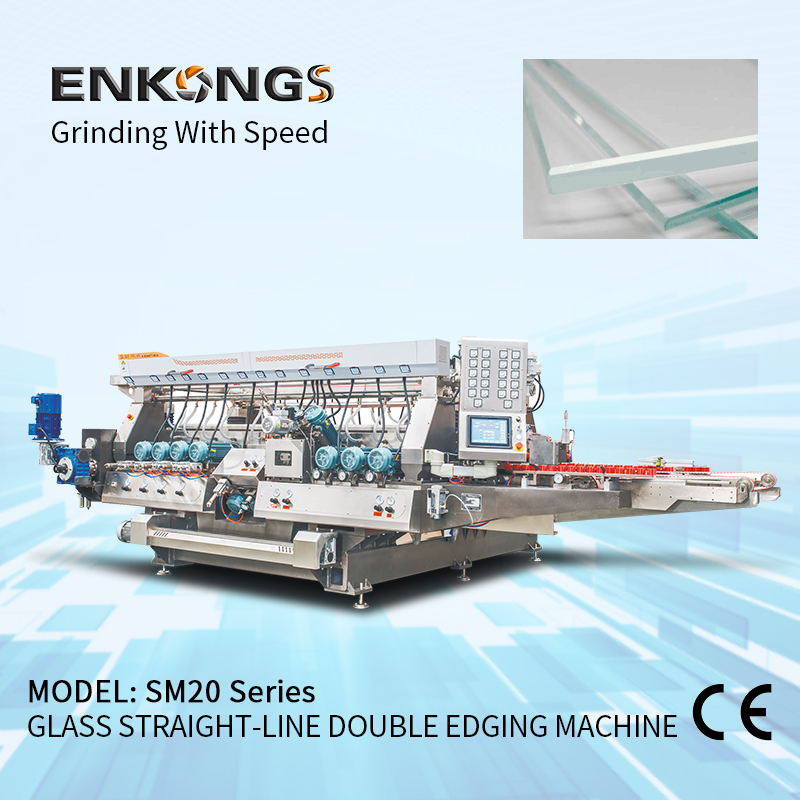

![Glass straight-line double edging machine SM 20]( "Glass straight-line double edging machine SM 20")
SM 20 adopted auto-polish feeding senor, optimizing polish level.
Suitable for high polish demanded products, such as household appliances and furniture.

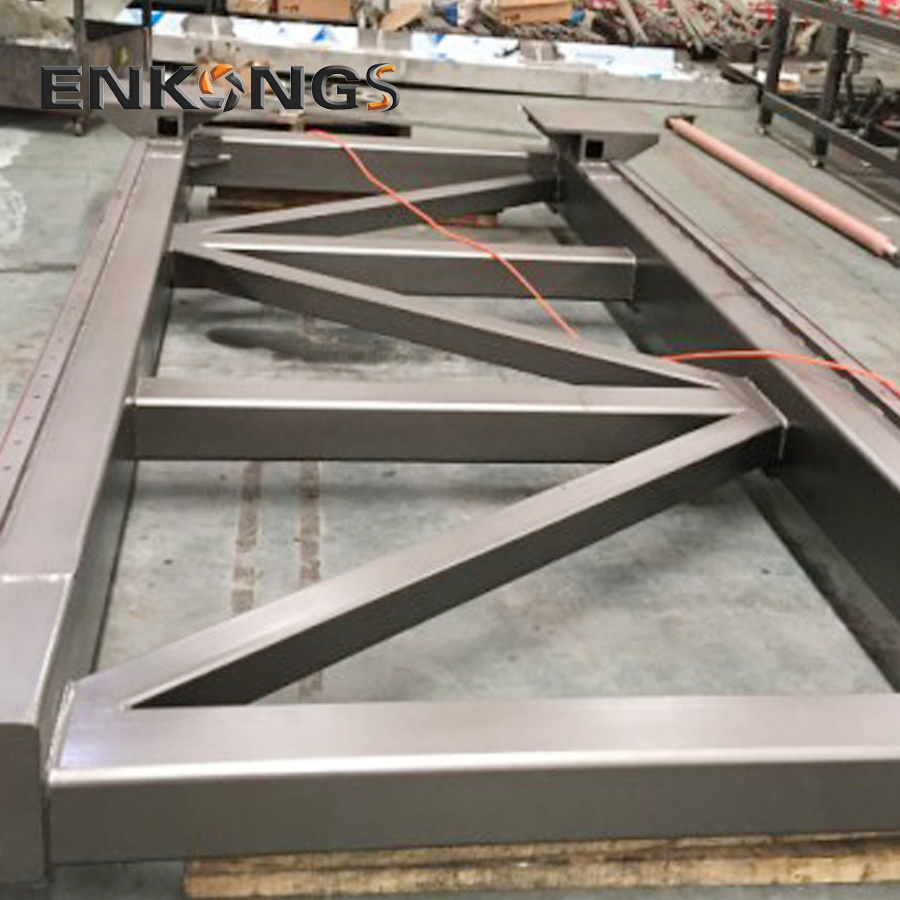

Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
/ Technical Date
Technical Date
◆ Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
◆ Max. glass dimension: Up to 4200
◆ Min. glass size: 300x300 (optional: 250x250)
◆ Glass thickness: 3~25 mm
◆ Working Speed: 0.5-12 8m/mins
◆ Dimension: 7820×1400×2500mm
◆ Width adjustment Speed: 2m/mins (optional:8m/mins)
◆ Max. edge grinding: 1~3 mm
◆Tolerance of the diagonal(1000x1000): ±0.5mm
◆ Tolerance on the parallelism(mm): ±0.3mm
◆Total power: 68 KW
/ producy detials
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
/ Wheels Disposal
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
