/ General description
![undefined undefined]()
Description

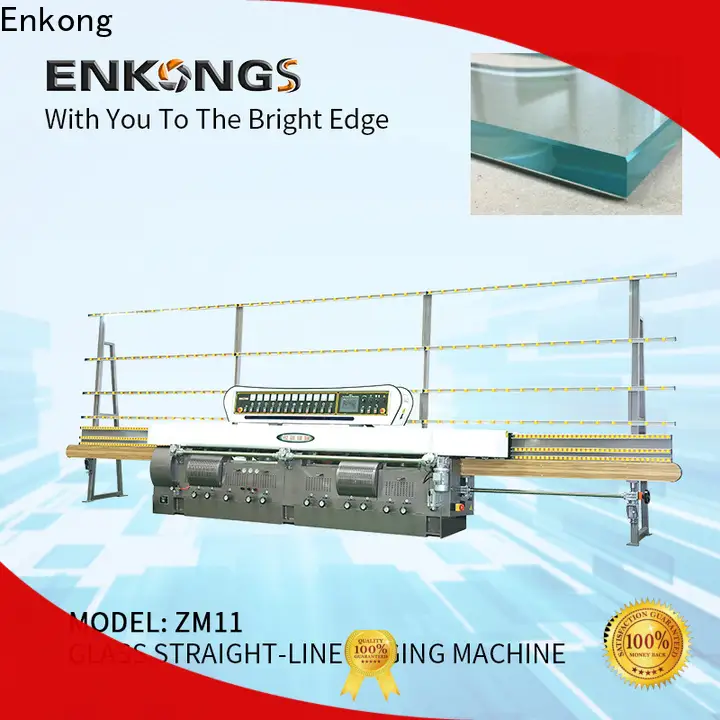

ZM11 is suitable for processing straight-line edge & 45째 arrises on glass.
Description
Rough, fine grinding and polishing on glass flat edge and arrises can be finished at one time.
Description
A special design of the in-feed section for controlling the grinding amount of glass without adjusting each spindle individually.
Description
Input and output conveyors adopt timing belt which can improve the stability of transmission.
Description
Speed is adjusted by frequency inverter or stepless speed variator.
Description
PLC with pneumatic polishing.
/ Technical Date
Technical Date
◆ Spindles: 11 pcs
◆ Processing glass thickness: 3-25mm
◆ Angle of arris: 45 degree
◆ Min.size of glass: 80mm*80mm
◆ Processing speed: 0.5-4.5 m/mins
◆Installed power: 22 KW
◆Dimension: 7920×1400×2500mm
/ producy detials
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
/ Wheels Disposal
7 for the straight-line edge, 2 for front arris and 2 for back arris.
![undefined undefined]()
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
