Company Advantages1. Enkong is made with suitable materials. The designer determines the material according to the goods. For example, if the displayed goods are heavy, the better choice is wood/wire/plastic material. The processing speed of our machines is adjustable
2. This product has revolutionized the methods of production and has increased productivity, production, and income, thereby leading to rapid economic growth. English and Chinese instruction manual are available for our high quality
glass machinery3. The product has a low surface roughness index. Its surface has been treated with grinding machining to eliminate any burrs and sags and crests. Our products have wide applications
4. This product has the required precision. It provides enough dynamic precision for the program without any human error. Our machines are simple to install
5. The product is characterized by increased operational flexibility. It can be adapted to multiple directions to perform a wide variety of multitasking. All our machines are especially designed for high precision
/ General description
![undefined]( "undefined")

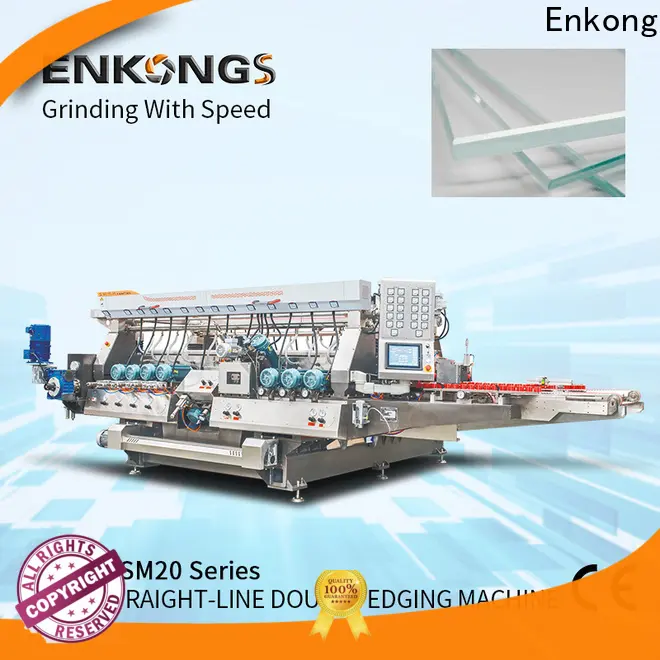

SM 20 adopted auto-polish feeding senor, optimizing polish level.
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
/ Technical Date
Technical Date
◆ Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
◆ Max. glass dimension: Up to 4200
◆ Min. glass size: 300x300 (optional: 250x250)
◆ Glass thickness: 3~25 mm
◆ Working Speed: 0.5-12 8m/mins
◆ Dimension: 7820×1400×2500mm
◆ Width adjustment Speed: 2m/mins (optional:8m/mins)
◆ Max. edge grinding: 1~3 mm
◆Tolerance of the diagonal(1000x1000): ±0.5mm
◆ Tolerance on the parallelism(mm): ±0.3mm
◆Total power: 68 KW
/ producy detials
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
/ Wheels Disposal
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. The Enkong brand is a very popular manufacturer.
double glass machine have won much reputation for the application of high technology.
2. Guangdong Enkong Machinery Co.,Ltd. consistently selects the best and most advanced equipment and integrated information systems for its plants.
3. Guangdong Enkong Machinery Co.,Ltd. constantly researches and develops a large number of novelty, quality, and perfect double edger products. Guangdong Enkong Machinery Co.,Ltd. has successfully created the famous Chinese brand Enkong.
