Company Advantages1. Cute outlook of double edger helps it win the market. Our products has high performance in glass processing
2. This product is extremely praised owing to their huge economic benefits. Our products are of high quality with great functions
3. This product has a long service life while delivering constantly high quality. Our products have wide applications
4. The product is widely demanded in the market for featuring stable performance and strong functionality. English and Chinese instruction manual are available for our high quality
glass machinery/ General description
![undefined]( "undefined")

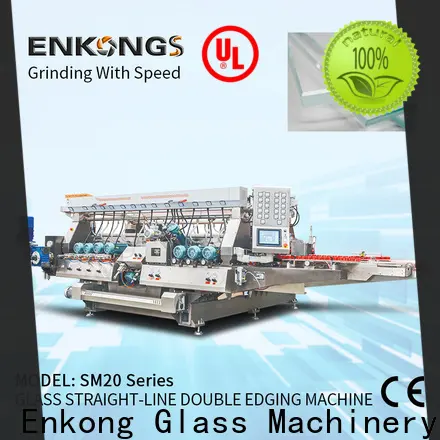

SM 22 adopted auto-polish feeding senor, optimizing polish level.
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
/ Technical Date
Technical Date
◆ Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
◆Max. glass dimension: Up to 4200
◆ Min. glass size: 300x300 (optional: 250x250)
◆ Glass thickness: 3~25 mm
◆ Working Speed: 0.5-12 8m/mins
◆Width adjustment Speed: 2m/mins (optional:8m/mins)
◆Max. edge grinding: 1~3 mm
◆Tolerance of the diagonal(1000x1000): ±0.5mm
◆ Tolerance on the parallelism(mm): ±0.3mm
◆Total power: 68 KW
/ producy detials
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
![Wholesale double edger straight-line factory for photovoltaic panel processing 9]()
![Wholesale double edger straight-line factory for photovoltaic panel processing 10]()
![Wholesale double edger straight-line factory for photovoltaic panel processing 11]()
![Wholesale double edger straight-line factory for photovoltaic panel processing 12]()
/ Wheels Disposal
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. Guangdong Enkong Machinery Co.,Ltd. is internationally outstanding in the field of double edger . By developing new technological methods, Enkong manufactures straight line glass polishing machine to be a more competitive product.
2. Guangdong Enkong Machinery Co.,Ltd. has mature production technology and perfect quality guarantee system.
3. Guangdong Enkong Machinery Co.,Ltd.'s R&D capability has highlighted through portable
glass edging machine . Guangdong Enkong Machinery Co.,Ltd. persists in the service theory. Check now!
