Enkong Glass Machinery specialized in making high-quality glass machine, glass edging machine for global customers.

Top glass machine factory ZM11J company for round edge processing 1
Top glass machine factory ZM11J company for round edge processing 2
Top glass machine factory ZM11J company for round edge processing 3
Top glass machine factory ZM11J company for round edge processing 1
Top glass machine factory ZM11J company for round edge processing 2
Top glass machine factory ZM11J company for round edge processing 3

Top glass machine factory ZM11J company for round edge processing

Brand name:
Enkong
Place of origin:
Guangdong China
Certificate:
CE/ISO(CSA UL certificate can be customized according to customer requirement for the production)
Minimum order:
1 set
Price term:
FOB/CIF/C&F(optional)
Payment terms:
L/C, T/T
Package detail:
package with film
Delivery:
20-45days
Inquiry
Company Advantages
1. The mechanical parts of Enkong have undergone production processes such as metal material preparation, cutting, welding, surface treatment, drying, and spraying. Our products is energy-saving and easy to operate
2. The product can replace labor to work on operations that are harmful or dangerous, while at the same time, it can avoid operators' mistakes. English and Chinese instruction manual are available for our high quality glass machinery
3. This product is attracting attention due to its durability. It can withstand hundreds of repeatability and reproducibility without any system failure. Our machines are safe enough to operate
4. The product features the desired reliability. It is able to run at very high speed without any delays and work without any fatigue. CE certificate is available for all our glass processing machines
/  General description

undefined


undefined
Description

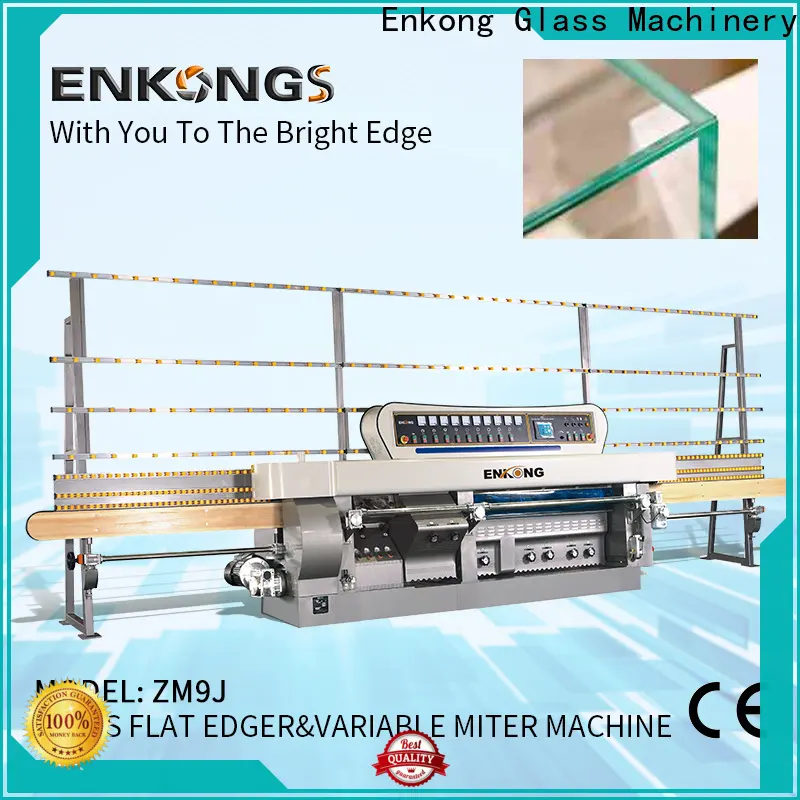

ZM9J is able to grind and polish the miter angle on glass, with bottom edge polishing and rear seaming all at the same time.

undefined
Description

Glass thicknesses is adjusted by a inverter and showed on a digital display/ montior.

undefined
Description

Input and output conveyor adopt timing belt which can improve the   transmission precision.

undefined
Description

The processed glass surface is very bright and smooth, approaching the original glass surface.

undefined
Description

The mitering angle is from 0 to 60 degree.

/  Technical Date
undefined

Technical Date

◆ Processing glass thickness: 3~25mm
◆ Miter angle: 0°~60°
◆ Min size processing glass:  80mm×80mm
◆ Processing speed: 1.2~5.8m/min
◆ Installation power: 20.3KW
◆ Dimension: 7800mm (length) ×1400mm (width) ×2500m (height)
/  producy detials
Operation Condition

Power supply: AC220V, 380V, 415V ±10%  3φ  50Hz/60Hz±2%
Environment: Temperature: 1~40℃


/  Wheels Disposal

5 adjustable spindles for the straight-line edge/ bevel.
4 spindles for front and back arris each.


undefined


★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
