Company Advantages1. The production of double edger always take glass double edger into account. The performance and operation of our products are stable
2. All of the machines have a warranty of one year. Enkong has excellent customer service representatives available to help you out by phone.
3. The delivery time for our product is 25-40 days. double edger machine,
double glass machine are rich in glass double edger.
4. Our machines feature high precision and low operating cost. With such features as double glass machine,
glass double edging machine,glass double edger is worth being popularized.
/ Technical Date
Model
SM2615/25/30/40
Thickness
3--19mm
Glass width
250-1700/300-2700/300-3200/300-4200
Transmission speed
1-15m/min
Parallel tolerance
≤0.2mm/m
Diagonal tolerance
≤0.5mm/m
Arris width
1-5mm
Max.grinding removal of flat edge for each side
3mm
Width opening speed
2m/min(≤ 2500mm width);4m/min(≥3000mm width)
Transmission speed
1-18m/min
Rotation for motor
NO.1-NO.3 using 4200rpm/min;NO.4-9 using frequency conversion;No.10-12 using 1400rpm/min.
Polishing system
Cylinder(Standard)/ Automatic pneumatic polishing(Option)
Installtion power
About 65kw
Weight
About 8000kgs/8500kgs/9000kgs/9500kgs
/ General description
Description
Suitable for high polish demanded products, such as household appliances and furniture.
Description
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.

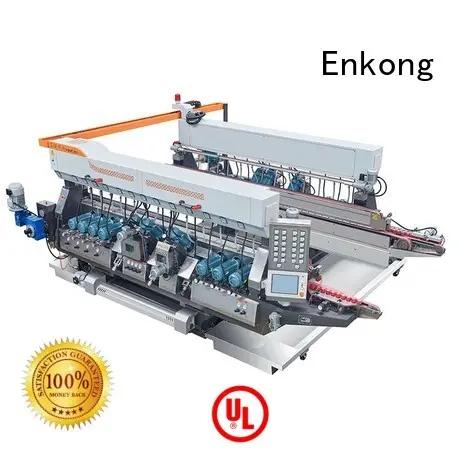

![straight-line edging production double edger round Enkong 9]()
/ Operation Condition
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. Guangdong Enkong Machinery Co.,Ltd. can deliver double edger on time and seldom on shortage because we have powerful team to support.
2. Enkong has been more competitive for its high-quality double edger machine.
3. As an essential focus, glass double edger plays an important role in the development of Enkong. Get more info!
