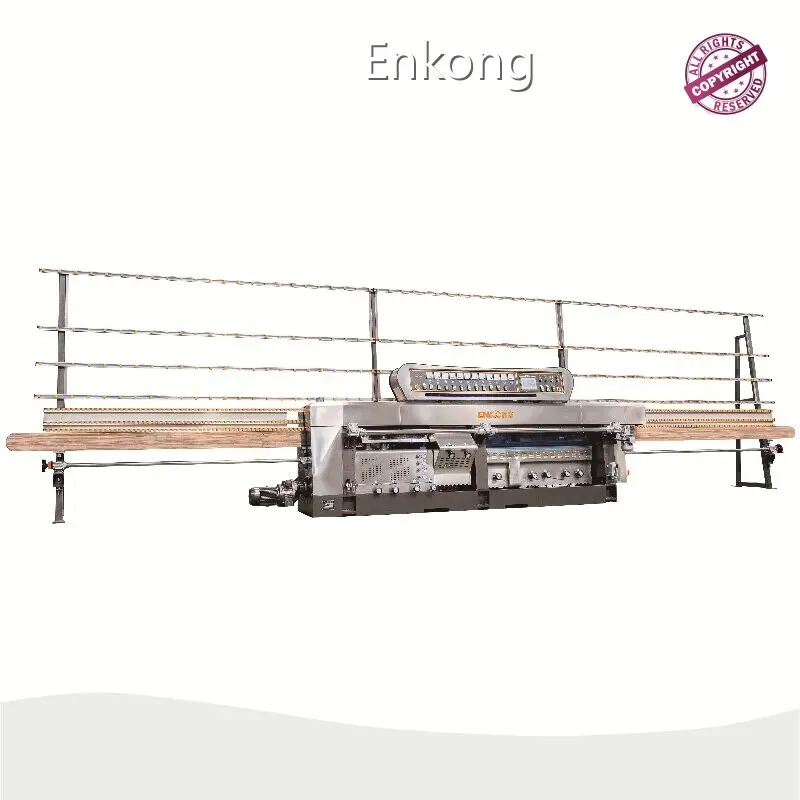

Glass Mitering Machine Enkong by Enkong

Product details of the glass mitering machine

Product Information

Enkong glass mitering machine has audacious and unique design style. We constantly monitor and adjust the production processes to ensure that the quality of the product meets the requirements of both customers and the company’s policy. Our service for glass mitering machine will never let you down.

Variable Glass Miter Machine Description

The Variable Glass Miter Machine by Enkong Glass Machinery is a versatile solution designed for precision cutting and shaping of glass panels at different angles. This machine offers variable miter cutting capabilities, allowing users to achieve precise miters for various applications. With its advanced features and robust construction, it ensures efficient and accurate glass processing.

Variable Glass Miter Machine Features

• Variable miter cutting for flexibility in angle adjustments

• Precision cutting for accurate shaping of glass panels

• Advanced controls for easy operation and customization

• High-quality components for durability and reliability

• Integrated safety features for operator protection

• Compact design for space-saving and efficient workflow

• Suitable for various glass types and thicknesses

Variable Glass Miter Machine Application

The Variable Glass Miter Machine is widely used in the glass industry for applications such as furniture manufacturing, architectural projects, and decorative glass production. It is ideal for cutting miters on glass panels used in windows, doors, mirrors, and other glass structures. Whether it's for residential, commercial, or industrial purposes, this machine delivers precise and reliable results to meet the diverse needs of glass processing operations.

ZM9J is able to grind and polish the miter angle on glass, with bottom edge polishing and rear seaming all at the same time.

Glass thicknesses is adjusted by a inverter and showed on a digital display/ montior.

Input and output conveyor adopt timing belt which can improve the   transmission precision.

The processed glass surface is very bright and smooth, approaching the original glass surface.

The mitering angle is from 0 to 60 degree.

Technical Date

◆ Processing glass thickness: 3~25mm
◆ Miter angle: 0°~60°
◆ Min size processing glass:  80mm×80mm
◆ Processing speed: 1.2~5.8m/min
◆ Installation power: 20.3KW
◆ Dimension: 7800mm (length) ×1400mm (width) ×2500m (height)

Power supply: AC220V, 380V, 415V ±10%  3φ  50Hz/60Hz±2%
Environment: Temperature: 1~40℃

5 adjustable spindles for the straight-line edge/ bevel.
4 spindles for front and back arris each.

★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.

Company Feature

• Enkong's machinery is deeply favored by most customers for the following advantages: reasonable and novel design, compact structure, stable performance, and easy operation and installation.
• Enkong's glass machine,glass cutting machine,glass machinery are of good quality and competitive price. And the sales network covers from provinces, municipalities and autonomous regions to many developed countries and regions.
• Enkong is committed to providing excellent services for consumers, including pre-sales inquiry, in-sales consulting and return and exchange service after sales.
• Enkong is located at the intersection of different highways with great geographic position and easy traffic. Based on that, the distribution of supply is convenient and it is the ideal place for the sustainable development of the enterprise.
• Founded in Enkong has been focusing on the R&D and manufacture of machinery for many years. We continue to provide high-quality machinery in the future.
glass machine,glass cutting machine,glass machinery produced by Enkong are of high quality and reasonable price. If you are interested in them, please call us.
