Company Advantages1. The newly launched products by Guangdong Enkong Machinery Co.,Ltd. were all completed by the internationally renowned design company. The delivery time for our product is 25-40 days
2. All relative certificates to guarantee quality will be provided by Guangdong Enkong Machinery Co.,Ltd.. We have perfect after-sale service for our products
3. We are long-time established manufacturer, distributor, importer and exporter of double edger. CE certificate is available for all our
glass processing machines4. The product prevails over its competitors with stable performance and long service life. Our products are of high quality with great functions
/ Technical Date
Model
SM1015/20/25/30/40
Thickness
3--12mm
Glass width
250-1700/300-2200/300-2700/300-3200/300-4200mm
Transmission speed
1-25m/min
Parallel tolerance
≤0.2mm/m
Diagonal tolerance
≤0.5mm/m
Arris width
1-3mm
Max.grinding removal of flat edge for each side
1.5mm
Width opening speed
16m/min
Transmission speed
1-25m/min
Rotation for motor
NO.1-NO.3 using 4200rpm/min;NO.4-5 using frequency conversion;
Installtion power
about 36kw
Weight
about 5000/5500/6000/6500/7000kgs
/ General description
Production speed of 1-25m/min
Width opening speed of 16m/min
For constructoin glass
![undefined undefined]()

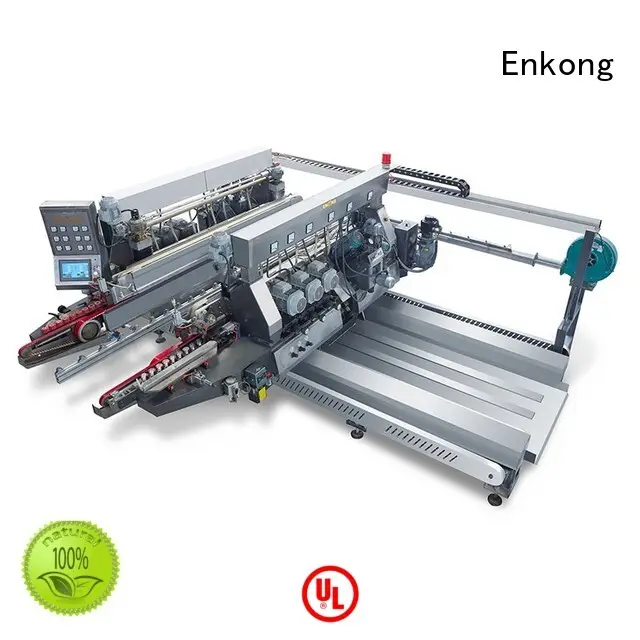

![Hot production glass double edger straight-line Enkong Brand 5]()
/ Operation Condition
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
Company Features1. Please Contact Us! Enkong's double edger, glass double edger,
double glass machine Have The Features Of High Efficient And Low Priced. We Are Willing To Enter Into Business Relations With Your Firm On The Basis Of Equality And Mutual Benefit.
2. The friendly cooperation with glass double edger helps the growth of Enkong. Inquiry!
