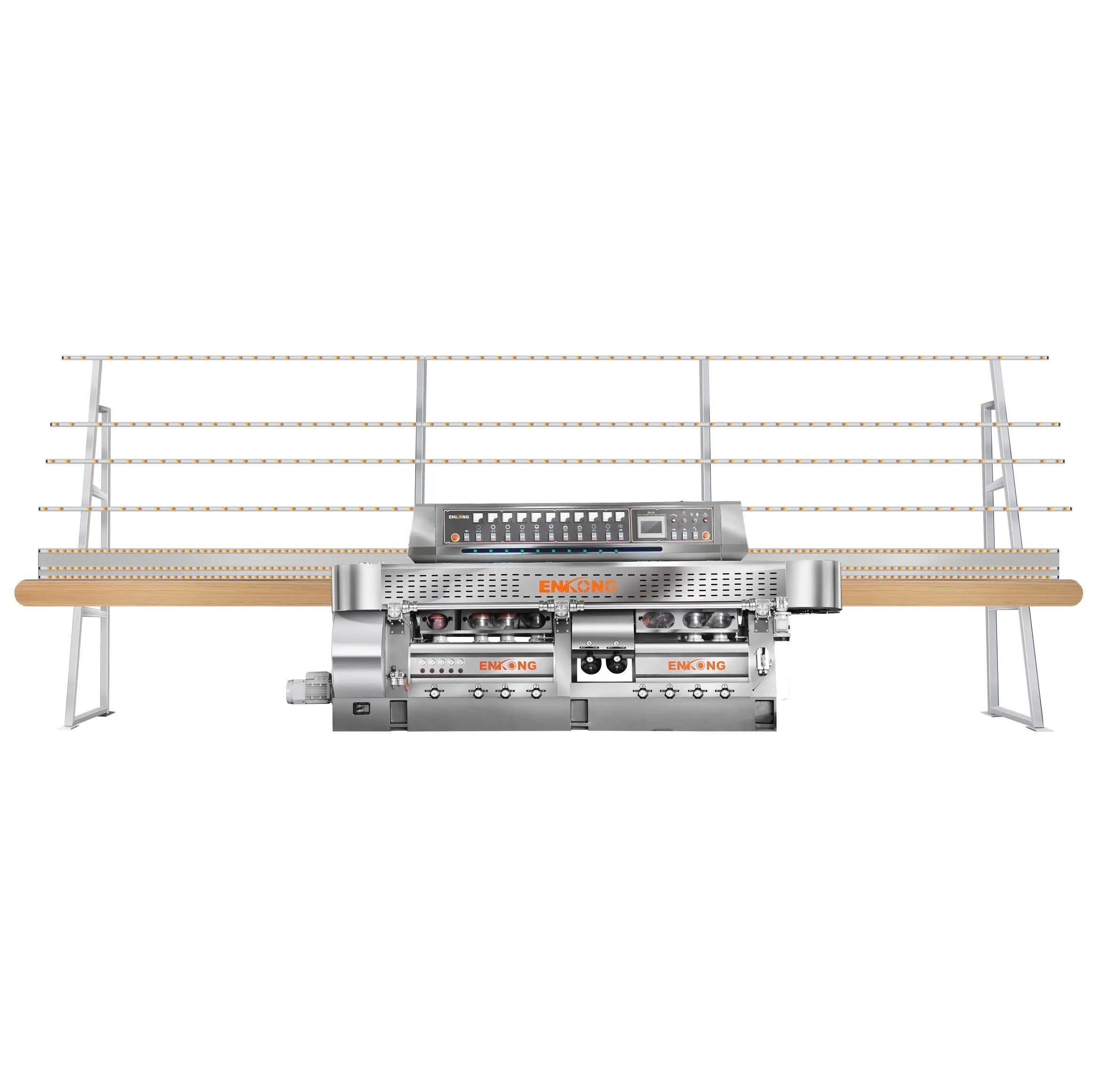

ZM10W Glass Straight-Line Edging Polishing Machine

Product Description

The ZM10W Glass Flat Edge Straight-Line Edging Machine is a high-performance solution for achieving precise flat edging on glass panels. Engineered with cutting-edge technology and precision components, this machine ensures exceptional accuracy and efficiency in glass processing. Whether you're working with standard float glass or specialty glass types, the ZM10W delivers consistent results, making it an indispensable tool for glass manufacturers and processors.

Product Features

• Flat Edging Capability: Specialized machinery designed for flat edging of glass panels, ensuring smooth and uniform edges for various applications.

• High-Speed Processing: Equipped with powerful motors and advanced mechanisms, the ZM10W achieves rapid processing speeds without compromising on quality.

• Adjustable Parameters: Offers flexibility to adjust edging parameters such as speed, angle, and thickness to accommodate different glass specifications and processing requirements.

• Integrated Water Circulation System: Includes a built-in water circulation system for cooling and lubricating the grinding wheels, ensuring optimal performance and prolonging their lifespan.

• User-Friendly Interface: Features an intuitive control panel with easy-to-use controls for seamless operation and monitoring of machine functions.

• Durable Construction: Constructed with high-quality materials and precision-engineered components for durability and reliability in demanding industrial environments.

Product Application

The ZM10W Glass Flat Edge Straight-Line Edging Machine is ideal for a wide range of glass processing applications, including architectural glass, mirrors, furniture, and automotive glass. Whether you're producing glass windows, doors, or decorative panels, this versatile machine delivers superior flat edging results, enhancing the quality and aesthetics of glass products.

Manufacturer Information

The ZM10W Glass Flat Edge Straight-Line Edging Machine is manufactured by a reputable company known for its expertise in glass processing machinery. With a focus on innovation, quality, and customer satisfaction, the manufacturer continues to set industry standards with its advanced solutions for glass manufacturing and processing.

ZM10 W is suitable for processing straight-line edge & 45°arrises on glass.

A special design of the in-feed section for controlling the grinding amount of glass without adjusting each spindle individually.

Indepent wool felt wheel and the cerium water recirculation system make the flat edge more shining.

With ABB spindle motors and the conveyor system running on ball bearing units, this machine has a much stronger loading and delivering capacity, thus it is able to process mini piece and extremely thick piece with high precision and good water-proofing.

Input and output conveyors adopt timing belt which can improve the stability of transmission.

Speed is adjusted by frequency inverter; PLC with pneumatic polishing.

Technical Data

◆ Spindles: 10pcs
◆ Processing glass thickness: 3-25mm
◆ Angle of arris: 45°
◆ Min.size of glass: 40mm×40mm
◆ Processing speed: 0.5~5m/min
◆ Dimension: 7820×1400×2500mm

Power supply: AC220V, 380V, 415V ±10%  3φ  50Hz/60Hz±2%
Environment: Temperature: 1~40℃

6 spindles for the straight-line edge (adopt the independent wool felt wheel)
2 spindles for front and back arris each.

★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
