Company Advantages1. Our machines can be customized according to customer's requirement. Owing to its various quality attributes, provided glass double edger is highly appreciated by Enkong clients.
2. Guangdong Enkong Machinery Co.,Ltd.'s customer service always works on a professional level. English and Chinese instruction manual are available for our high quality
glass machinery3. The

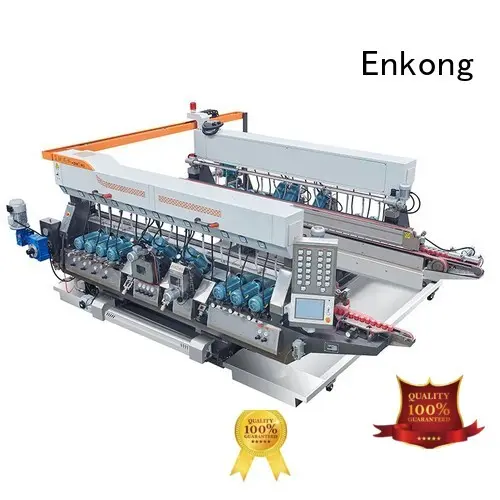

double glass machine is glass double edger designed for increased consumer convenience. The working efficiency of our products is high.
4. It adopts high-tech for product performance improvement. Our glass machinery mainly include
Glass Edging Machine, Glass Washing Machine and Glass Drilling Machine
5. With the performance of double edgerbeing applied, Enkong gains wide population. The delivery time for our product is 25-40 days
/ Technical Date
Model
SM2615/25/30/40
Thickness
3--19mm
Glass width
250-1700/300-2700/300-3200/300-4200
Transmission speed
1-15m/min
Parallel tolerance
≤0.2mm/m
Diagonal tolerance
≤0.5mm/m
Arris width
1-5mm
Max.grinding removal of flat edge for each side
3mm
Width opening speed
2m/min(≤ 2500mm width);4m/min(≥3000mm width)
Transmission speed
1-18m/min
Rotation for motor
NO.1-NO.3 using 4200rpm/min;NO.4-9 using frequency conversion;No.10-12 using 1400rpm/min.
Polishing system
Cylinder(Standard)/ Automatic pneumatic polishing(Option)
Installtion power
About 65kw
Weight
About 8000kgs/8500kgs/9000kgs/9500kgs
/ General description
Description
Suitable for high polish demanded products, such as household appliances and furniture.
Description
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
/ Operation Condition
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. Adversity Successfully Overcome Is The Highest Glory. Enkong Offers A Wide Range Of double edger, glass double edger, double glass machine At Reasonable Price To Customers From All Over The World. Please Contact Us!
2. Enkong focuses on continuous technological innovation to improve products and services. Contact!
