Enkong Glass Machinery specialized in making high-quality glass machine, glass edging machine for global customers.

Enkong ZM11J glass mitering machine customized for grind1 1
Enkong ZM11J glass mitering machine customized for grind1 2
Enkong ZM11J glass mitering machine customized for grind1 3
Enkong ZM11J glass mitering machine customized for grind1 1
Enkong ZM11J glass mitering machine customized for grind1 2
Enkong ZM11J glass mitering machine customized for grind1 3

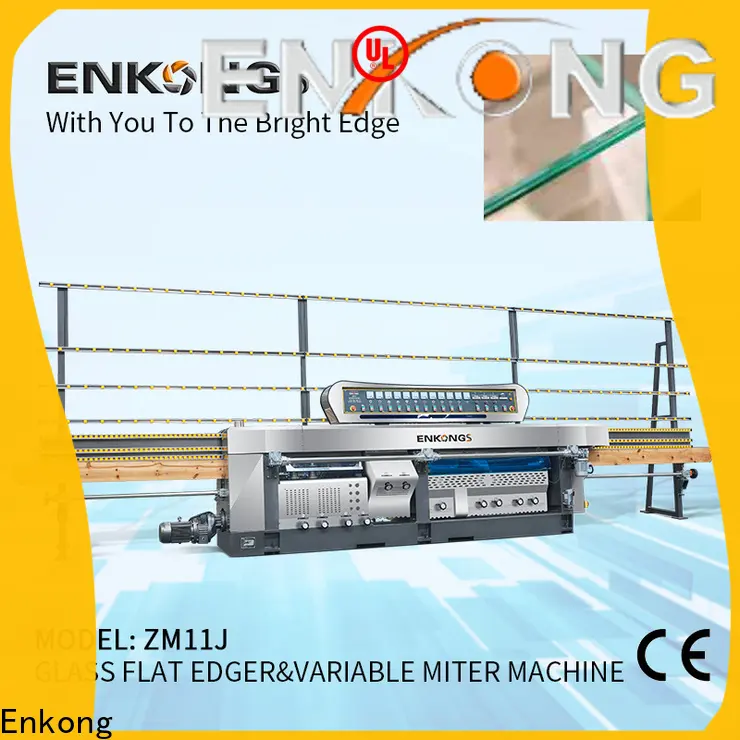

Enkong ZM11J glass mitering machine customized for grind1

Brand name:
Enkong
Place of origin:
Guangdong China
Certificate:
CE/ISO(CSA UL certificate can be customized according to customer requirement for the production)
Minimum order:
1 set
Price term:
FOB/CIF/C&F(optional)
Payment terms:
L/C, T/T
Package detail:
package with film
Delivery:
20-45days
Inquiry
Company Advantages
1. The machining process of Enkong mitering machine includes the following stages: laser cutting, heavy processing, metal welding, metal drawing, fine welding, roll forming, rending, and so forth. Our machines feature high precision and low operating cost
2. By rationally arranging talent and equipment resources, the products can be optimally manufactured or increased in output rate. All our machines are especially designed for high precision
3. This product offers a versatile function and user-friendly operation. The delivery time for our product is 25-40 days
/  General description

undefined

undefined
Description

ZM11 J is able to grind and polish the miter angle on glass, with bottom edge polishing and rear seaming all at the same time.

undefined
Description

Glass thicknesses is adjusted by a inverter and showed on a digital display/ montior.

undefined
Description

Input and output conveyor adopt timing belt which can improve the   transmission precision.

undefined
Description

The processed glass surface is very bright and smooth, approaching the original glass surface.

undefined
Description

The mitering angle is from 0 to 60 degree.

/  Technical Date
undefined

Technical Date

◆ Processing glass thickness: 3~25mm
◆ Miter angle: 0°~60°
◆ Min size processing glass: 80mm×80mm
◆ Processing speed: 1.2~6m/min
◆ Installation power: 23.3KW
◆ Dimension: 7920mm (length) ×1400mm (width) ×2500m (height)
/  producy detials
Operation Condition

Power supply: AC220V, 380V, 415V ±10%  3φ  50Hz/60Hz±2%
Environment: Temperature: 1~40℃


/  Wheels Disposal

5 adjustable spindles for the straight-line edge/ bevel.
2 spindles for front and back arris each.
2 spindles for bottom.


undefined


★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
