Enkong Glass Machinery specialized in making high-quality glass machine, glass edging machine for global customers.

Enkong zm10w double glazing glass machine company for grind 1
Enkong zm10w double glazing glass machine company for grind 2
Enkong zm10w double glazing glass machine company for grind 3
Enkong zm10w double glazing glass machine company for grind 4
Enkong zm10w double glazing glass machine company for grind 5
Enkong zm10w double glazing glass machine company for grind 1
Enkong zm10w double glazing glass machine company for grind 2
Enkong zm10w double glazing glass machine company for grind 3
Enkong zm10w double glazing glass machine company for grind 4
Enkong zm10w double glazing glass machine company for grind 5

Enkong zm10w double glazing glass machine company for grind

Brand name:
Enkong
Place of origin:
Guangdong China
Certificate:
CE/ISO(CSA UL certificate can be customized according to customer requirement for the production)
Minimum order:
1 set
Price term:
FOB/CIF/C&F(optional)
Payment terms:
L/C, T/T
Package detail:
package with film
Delivery:
20-45days
Inquiry
Company Advantages
1. The design team of Enkong double glazing glass machine keeps a close eye to the trend of the product so that the ever-changing market needs can be met. The delivery time for our product is 25-40 days
2. With the help of this product, time, money, and labor are significantly saved and reduced. This product can greatly reduce the production cost of the manufacturer. Our products has high performance in glass processing
3. The quality of double glazing glass machine is fine. Our products is energy-saving and easy to operate
4. While contributing to the , double glazing glass machine can also sustain the characteristics of . The working efficiency of our products is high
5. Based on proven technology, this product offers high performance to customers. Our products are of high quality with great functions
/  General description

undefined


undefined
Description

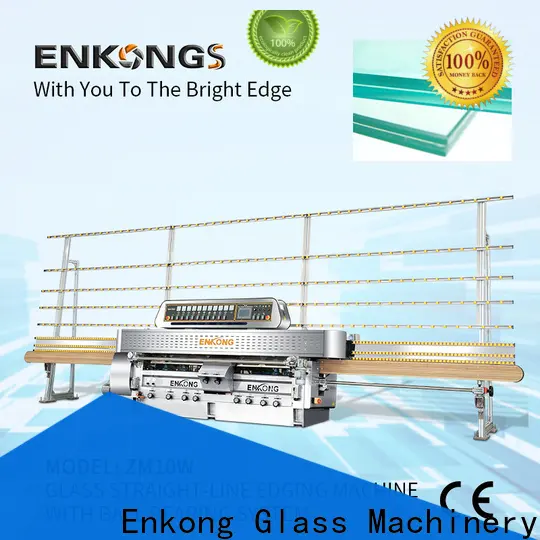

ZM10 W is suitable for processing straight-line edge & 45°arrises on glass.

undefined
Description

A special design of the in-feed section for controlling the grinding amount of glass without adjusting each spindle individually.

undefined
Description

Indepent wool felt wheel and the cerium water recirculation system make the flat edge more shining.

undefined
Description

With ABB spindle motors and the conveyor system running on ball bearing units, this machine has a much stronger loading and delivering capacity, thus it is able to process mini piece and extremely thick piece with high precision and good water-proofing.

undefined
Description

Input and output conveyors adopt timing belt which can improve the stability of transmission.

undefined
Description

Speed is adjusted by frequency inverter; PLC with pneumatic polishing.

/  Technical Date
undefined

Technical Data

◆ Spindles: 10pcs
◆ Processing glass thickness: 3-25mm
◆ Angle of arris: 45°
◆ Min.size of glass: 40mm×40mm
◆ Processing speed: 0.5~5m/min
◆ Dimension: 7820×1400×2500mm
/  producy detials
Operation Condition

Power supply: AC220V, 380V, 415V ±10%  3φ  50Hz/60Hz±2%
Environment: Temperature: 1~40℃


undefined
undefined
undefined
/  Wheels Disposal

6 spindles for the straight-line edge (adopt the independent wool felt wheel)
2 spindles for front and back arris each.


undefined


★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.




Company Features
1. Guangdong Enkong Machinery Co.,Ltd. invests much in technology innovation to reach the world's advanced level.
2. We guarantee that the performance of double glazing glass machine will satisfy the local needs. Inquire now!
