Company Advantages1. There are many factors being considered while designing Enkong . They are the selection of materials, modes of loading, safety factors, allowable stresses, etc. The performance and operation of our products are stable
2. Guangdong Enkong Machinery Co.,Ltd. has complete quality inspection and quality assurance system. Our products is energy-saving and easy to operate
3. Structural hardness is a prominent feature that should be noticed. It has been pre-treated with various machining to resist the influence of other objects that are much tougher. The working efficiency of our products is high
4. The product is characterized by high efficiency. Its advanced energy-saving technology can maximize energy utilization to support its operation. All of the machines have a warranty of one year
5. The product has high precision. It has undergone stamping treatment which is designed to enhance the precision of the product. Our products has high performance in glass processing
/ TECHNICAL DATE
Model
SM2615/25/30/40
Thickness
3--19mm
Glass width
250-1700/300-2700/300-3200/300-4200
Transmission speed
1-15m/min
Parallel tolerance
≤0.2mm/m
Diagonal tolerance
≤0.5mm/m
Arris width
1-5mm
Max.grinding removal of flat edge for each side
3mm
Width opening speed
2m/min(≤ 2500mm width);4m/min(≥3000mm width)
Transmission speed
1-18m/min
Rotation for motor
NO.1-NO.3 using 4200rpm/min;NO.4-9 using frequency conversion;No.10-12 using 1400rpm/min.
Polishing system
Cylinder(Standard)/ Automatic pneumatic polishing(Option)
Installtion power
About 65kw
Weight
About 8000kgs/8500kgs/9000kgs/9500kgs
/ GENERAL DESCRIPTION

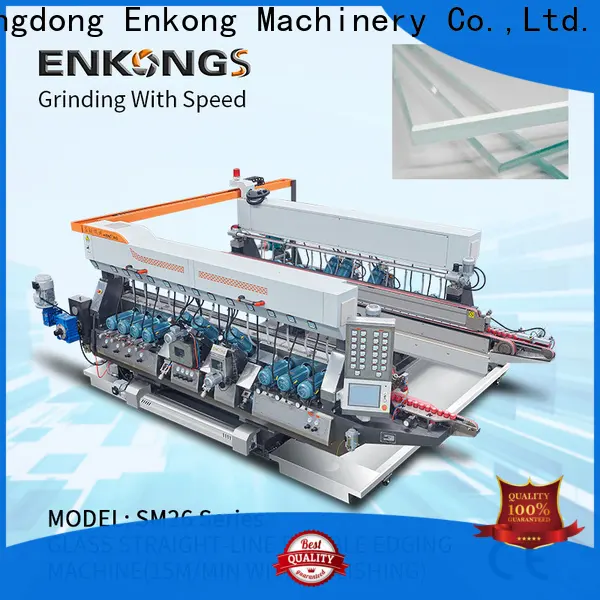

SM 26 adopted auto-polish feeding senor, optimizing polish level, secondary transmission.
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
Operation Condition
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
![Enkong SM 10 glass edging machine suppliers supply for household appliances 7]()
Company Features1. Guangdong Enkong Machinery Co.,Ltd. is an experienced and professional supplier specializing in the designing, manufacturing, and branding of high quality .
2. Being in the right factory location is a key ingredient in our business. This allows us to provide easy access to customers, workers, transportation, materials, and so on. And this will maximize opportunity while minimizing our costs and risks.
3. We have high quality requirements for .
