Company Advantages1. Each and every Enkong that leaves our factory has undergone and passed stringent strength testing in terms of strip tensile, tear, and seam strength. The delivery time for our product is 25-40 days
2. Professional after-sales service team in Enkong are equipped to serve customers timely. The processing speed of our machines is adjustable
3. The product always operates stably due to high precision electric components. Its electric boards, conductor, and resistor are fabricated to withstand vibration and impact. The quality of our products can be assured by our strict QC
/ General description
![undefined]( "undefined")

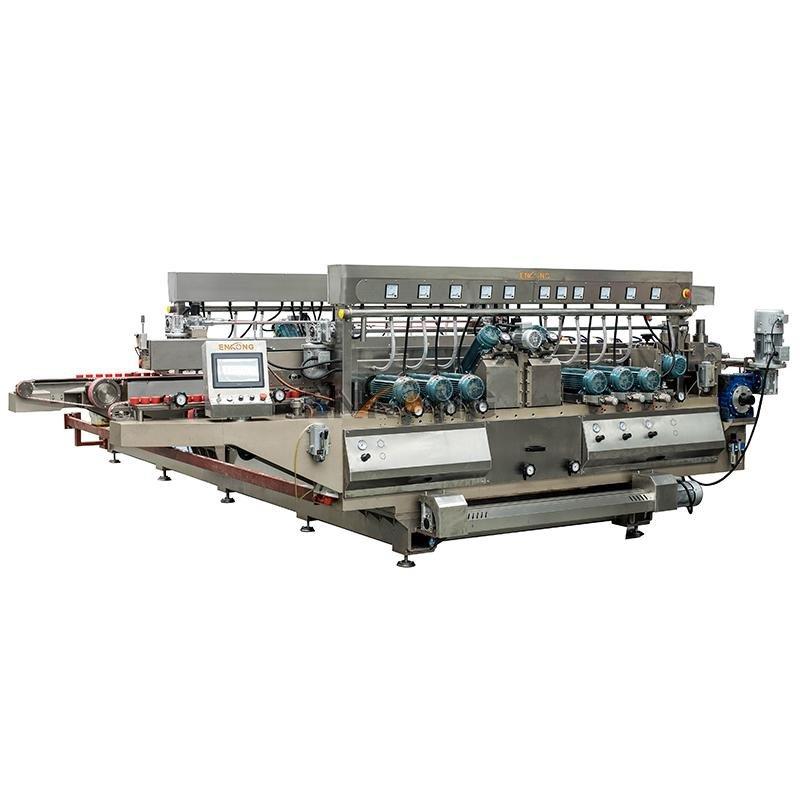

SM 20 adopted auto-polish feeding senor, optimizing polish level.
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
/ Technical Date
Technical Date
◆ Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
◆ Max. glass dimension: Up to 4200
◆ Min. glass size: 300x300 (optional: 250x250)
◆ Glass thickness: 3~25 mm
◆ Working Speed: 0.5-12 8m/mins
◆ Dimension: 7820×1400×2500mm
◆ Width adjustment Speed: 2m/mins (optional:8m/mins)
◆ Max. edge grinding: 1~3 mm
◆Tolerance of the diagonal(1000x1000): ±0.5mm
◆ Tolerance on the parallelism(mm): ±0.3mm
◆Total power: 68 KW
/ producy detials
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
/ Wheels Disposal
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. we have successfully developed a variety of double edger machine series.
2. We stick to the principle of honest business and high quality for double edger . Welcome to visit our factory!
