Company Advantages1. Enkong automatic
glass edge polishing machine is constructed using advanced techniques. Our machines are simple to install
2. Having this product definitely speeds up the production time. Because no thinking is needed by it, there is better repeatability and less human error. All our machines are especially designed for high precision
3. This product is thoroughly inspected by our skilled QC team to rule out every possibility of defect. Our products has high performance in glass processing
4. The outstanding feature of this product lies in high performance. CE certificate is available for all our
glass processing machines5. Many customers are greatly impressed by its optimal performance and superior quality. The delivery time for our product is 25-40 days
/ General description
![undefined]( "undefined")

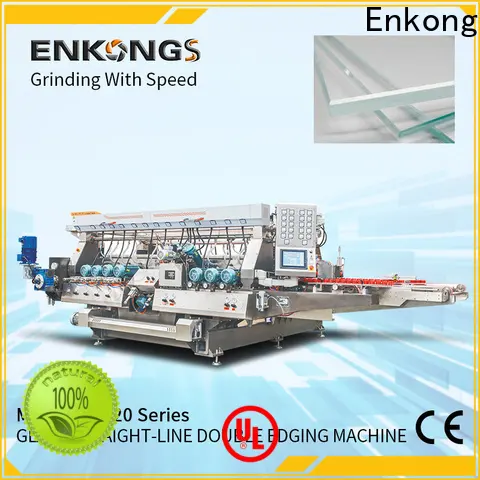

SM 20 adopted auto-polish feeding senor, optimizing polish level.
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
/ Technical Date
Technical Date
◆ Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
◆ Max. glass dimension: Up to 4200
◆ Min. glass size: 300x300 (optional: 250x250)
◆ Glass thickness: 3~25 mm
◆ Working Speed: 0.5-12 8m/mins
◆ Dimension: 7820×1400×2500mm
◆ Width adjustment Speed: 2m/mins (optional:8m/mins)
◆ Max. edge grinding: 1~3 mm
◆Tolerance of the diagonal(1000x1000): ±0.5mm
◆ Tolerance on the parallelism(mm): ±0.3mm
◆Total power: 68 KW
/ producy detials
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
/ Wheels Disposal
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. Guangdong Enkong Machinery Co.,Ltd. is well positioned to serve as an international automatic glass edge polishing machine manufacturer and exporter since its inception. The application of high technology is conducive to the production of small glass edge polishing machine .
2. Guangdong Enkong Machinery Co.,Ltd. has its own
double glass machine R&D team, and we are fully capable of producing personalized products to meet your requirements.
3. For a long time, Enkong has always attached great importance to the core value of technological power. Sustainability is an integral part of everything we do. We focus every day on finding new solutions to save water, energy and reduce waste.
