Company Advantages1. Enkong double edger is produced adopted advanced production technology. Our products has high performance in glass processing
2. The product can greatly increase productivity. It will lead to a decrease in production time and an increase in output. The processing speed of our machines is adjustable
3. The product can bear the most demanding industrial conditions. It is made of heavy-duty materials such as steel alloys and is not prone to rust and corrosion. The working efficiency of our products is high
4. It is endowed with convenient features. Its operating features have been carefully studied. The controlling panel is located on the basis of convenient handling. Our
glass machinery mainly include
Glass Edging Machine, Glass Washing Machine and Glass Drilling Machine
/ General description
![undefined]( "undefined")

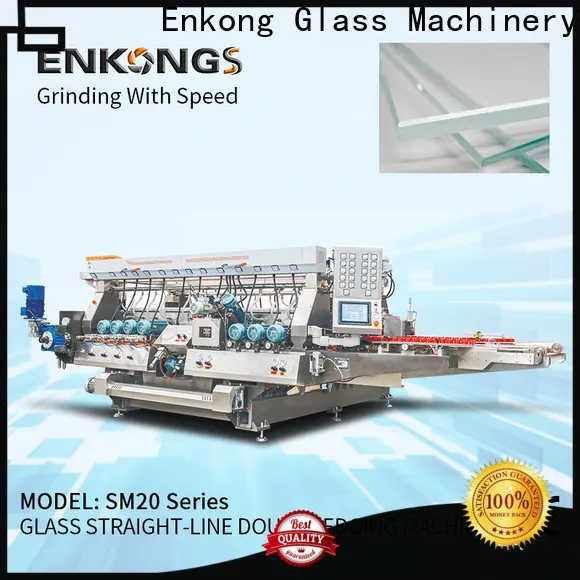

SM 20 adopted auto-polish feeding senor, optimizing polish level.
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
/ Technical Date
Technical Date
◆ Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
◆ Max. glass dimension: Up to 4200
◆ Min. glass size: 300x300 (optional: 250x250)
◆ Glass thickness: 3~25 mm
◆ Working Speed: 0.5-12 8m/mins
◆ Dimension: 7820×1400×2500mm
◆ Width adjustment Speed: 2m/mins (optional:8m/mins)
◆ Max. edge grinding: 1~3 mm
◆Tolerance of the diagonal(1000x1000): ±0.5mm
◆ Tolerance on the parallelism(mm): ±0.3mm
◆Total power: 68 KW
/ producy detials
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
/ Wheels Disposal
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. Enkong is a competitive supplier who specializes in producing double edger .
2. We have excellent manufacturing and innovation capabilities guaranteed by international advanced
glass double edging machine equipment.
3. With being its service ideology, Guangdong Enkong Machinery Co.,Ltd. provides . Inquire!
