Enkong Glass Machinery specialized in making high-quality glass machine, glass edging machine for global customers.

Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass 1
Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass 2
Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass 3
Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass 4
Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass 5
Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass 1
Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass 2
Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass 3
Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass 4
Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass 5

Enkong 45° arrises glass machinery manufacturers manufacturers for processing glass

Brand name:
Enkong
Place of origin:
Guangdong China
Certificate:
CE/ISO(CSA UL certificate can be customized according to customer requirement for the production)
Minimum order:
1 set
Price term:
FOB/CIF/C&F(optional)
Payment terms:
L/C, T/T
Package detail:
package with film
Delivery:
20-45days
Inquiry
Company Advantages
1. The most advanced water purification systems are used in Enkong glass machinery manufacturers . It is embedded with mature sterilizing and purifying technology which guarantees the clean water. Our products have wide applications
2. We not only provide stable quality of glass machinery manufacturers , but also have an ideology of globalization. The quality of our products can be assured by our strict QC
3. The product exposed to natural phenomena is not easily affected by temperature changes. It has passed the aging resistance test - the heat is applied for a certain period of time to check if there is any change. English and Chinese instruction manual are available for our high quality glass machinery
4. The product features reliable chemical resistance. It has excellent resistance to a wide range of chemicals including chlorinated hydrocarbons, fuels, and many acids. We can provide technical support for our products
/  General description

undefined


undefined
Description

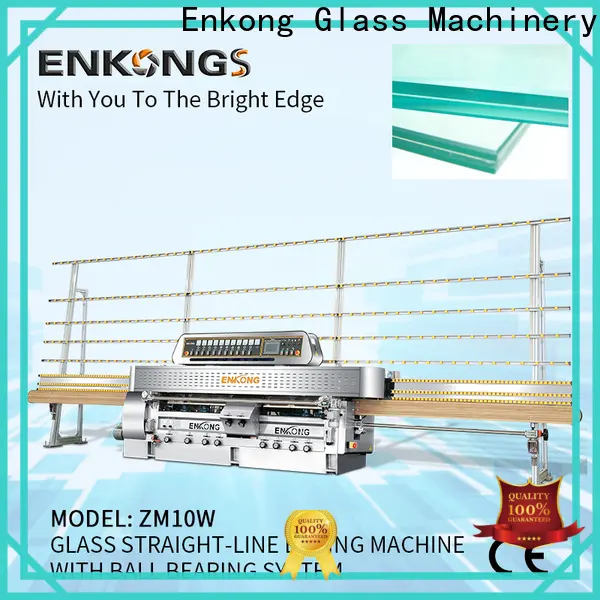

ZM10 W is suitable for processing straight-line edge & 45°arrises on glass.

undefined
Description

A special design of the in-feed section for controlling the grinding amount of glass without adjusting each spindle individually.

undefined
Description

Indepent wool felt wheel and the cerium water recirculation system make the flat edge more shining.

undefined
Description

With ABB spindle motors and the conveyor system running on ball bearing units, this machine has a much stronger loading and delivering capacity, thus it is able to process mini piece and extremely thick piece with high precision and good water-proofing.

undefined
Description

Input and output conveyors adopt timing belt which can improve the stability of transmission.

undefined
Description

Speed is adjusted by frequency inverter; PLC with pneumatic polishing.

/  Technical Date
undefined

Technical Data

◆ Spindles: 10pcs
◆ Processing glass thickness: 3-25mm
◆ Angle of arris: 45°
◆ Min.size of glass: 40mm×40mm
◆ Processing speed: 0.5~5m/min
◆ Dimension: 7820×1400×2500mm
/  producy detials
Operation Condition

Power supply: AC220V, 380V, 415V ±10%  3φ  50Hz/60Hz±2%
Environment: Temperature: 1~40℃


undefined
undefined
undefined
/  Wheels Disposal

6 spindles for the straight-line edge (adopt the independent wool felt wheel)
2 spindles for front and back arris each.


undefined


★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
