Enkong Glass Machinery specialized in making high-quality glass machine, glass edging machine for global customers.

Custom glass machinery company ZM11J company for grind 1
Custom glass machinery company ZM11J company for grind 2
Custom glass machinery company ZM11J company for grind 3
Custom glass machinery company ZM11J company for grind 1
Custom glass machinery company ZM11J company for grind 2
Custom glass machinery company ZM11J company for grind 3

Custom glass machinery company ZM11J company for grind

Brand name:
Enkong
Place of origin:
Guangdong China
Certificate:
CE/ISO(CSA UL certificate can be customized according to customer requirement for the production)
Minimum order:
1 set
Price term:
FOB/CIF/C&F(optional)
Payment terms:
L/C, T/T
Package detail:
package with film
Delivery:
20-45days
Inquiry
Company Advantages
1. The raw material used in Enkong is of high quality and has no any strange smell during use. CE certificate is available for all our glass processing machines
2. Despite the richness of its functionalities, the product is very easy to use for people. They can easily understand how to operate once they have a look at the instructions. Our machines are safe enough to operate
3. This product has a high gain performance. Its special surface coating enhances color reproduction and black level contrast with wide uniformity. All of the machines have a warranty of one year
4. It offers water penetration resistance. This level of water resistance is determined by the specifier based on one of the classes in BS EN 12154:2000 Curtain Walling, Watertightness, Performance Requirements and Classification. Our machines can be customized according to customer's requirement
/  General description

undefined


undefined
Description

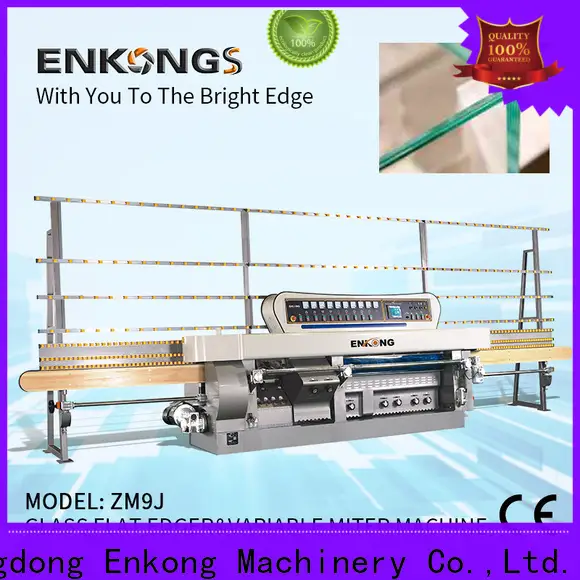

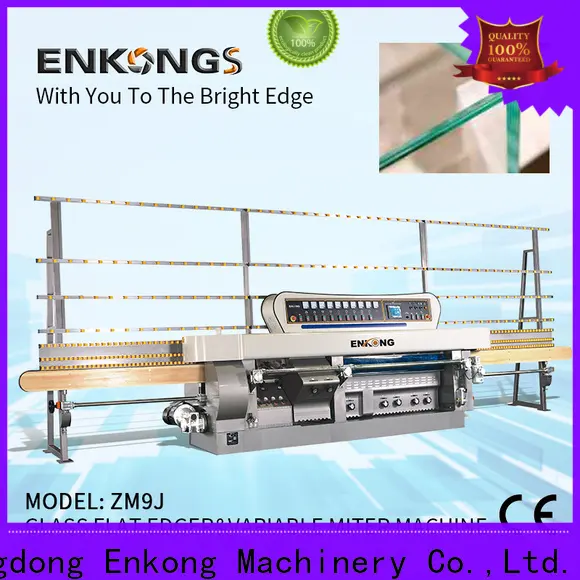

ZM9J is able to grind and polish the miter angle on glass, with bottom edge polishing and rear seaming all at the same time.

undefined
Description

Glass thicknesses is adjusted by a inverter and showed on a digital display/ montior.

undefined
Description

Input and output conveyor adopt timing belt which can improve the   transmission precision.

undefined
Description

The processed glass surface is very bright and smooth, approaching the original glass surface.

undefined
Description

The mitering angle is from 0 to 60 degree.

/  Technical Date
undefined

Technical Date

◆ Processing glass thickness: 3~25mm
◆ Miter angle: 0°~60°
◆ Min size processing glass:  80mm×80mm
◆ Processing speed: 1.2~5.8m/min
◆ Installation power: 20.3KW
◆ Dimension: 7800mm (length) ×1400mm (width) ×2500m (height)
/  producy detials
Operation Condition

Power supply: AC220V, 380V, 415V ±10%  3φ  50Hz/60Hz±2%
Environment: Temperature: 1~40℃


/  Wheels Disposal

5 adjustable spindles for the straight-line edge/ bevel.
4 spindles for front and back arris each.


undefined


★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
