Company Advantages1. Enkong has passed the following tests. It has been tested in terms of statics, dynamics, the strength of materials, vibrations, reliability, and fatigue. The processing speed of our machines is adjustable
2. The use of this product has greatly increased labor productivity and lower the labour intensity of workers. Hence, it is thought to be a must-have product for manufacturers. Our machines are simple to install
3. This product is sterile. It is composed of no inorganic materials and does not provide a living environment for microorganisms such as bacteria. All of the machines have a warranty of one year
4. The product features withstand enough pressure. It includes lots of compartments of various sizes. These compartments can effectively spread the weight around. Our products has high performance in glass processing
/ General description
![undefined]( "undefined")

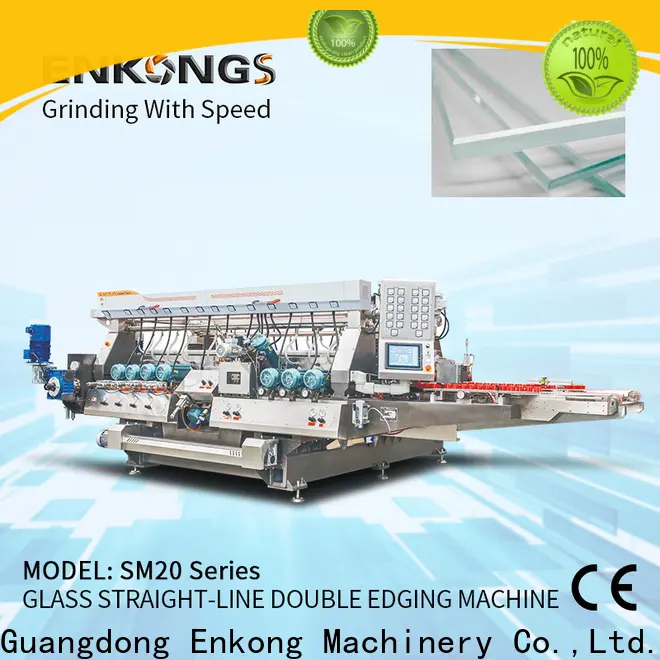

SM 20 adopted auto-polish feeding senor, optimizing polish level.
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
/ Technical Date
Technical Date
◆ Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
◆ Max. glass dimension: Up to 4200
◆ Min. glass size: 300x300 (optional: 250x250)
◆ Glass thickness: 3~25 mm
◆ Working Speed: 0.5-12 8m/mins
◆ Dimension: 7820×1400×2500mm
◆ Width adjustment Speed: 2m/mins (optional:8m/mins)
◆ Max. edge grinding: 1~3 mm
◆Tolerance of the diagonal(1000x1000): ±0.5mm
◆ Tolerance on the parallelism(mm): ±0.3mm
◆Total power: 68 KW
/ producy detials
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
/ Wheels Disposal
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. Guangdong Enkong Machinery Co.,Ltd. is a automatic
glass edge polishing machine manufacturing enterprise based in China. We have a strong industrial competitiveness and brand influence. Our high-technology small glass edge polishing machine is the best.
2. The quality of our glass double edger machine still keeps unsurpassed in China.
3. we have successfully developed a variety of
double glass machine series. Our mission is to be a reliable global source of high-quality products, providing exemplary customer service, while adding value to the industry through our ongoing and innovative breakthroughs of highly skilled people using the latest available technologies.
