Company Advantages1. Good material of
glass double edging machine makes good sale in Guangdong Enkong Machinery Co.,Ltd.. Our machines feature high precision and low operating cost
2. Enkong has enough ability to produce qualified glass double edging machine with high quality. English and Chinese instruction manual are available for our high quality
glass machinery3. glass double edging machine is welcomed by costumer for the great performance of glass double edger . The delivery time for our product is 25-40 days
/ General description
![undefined]( "undefined")

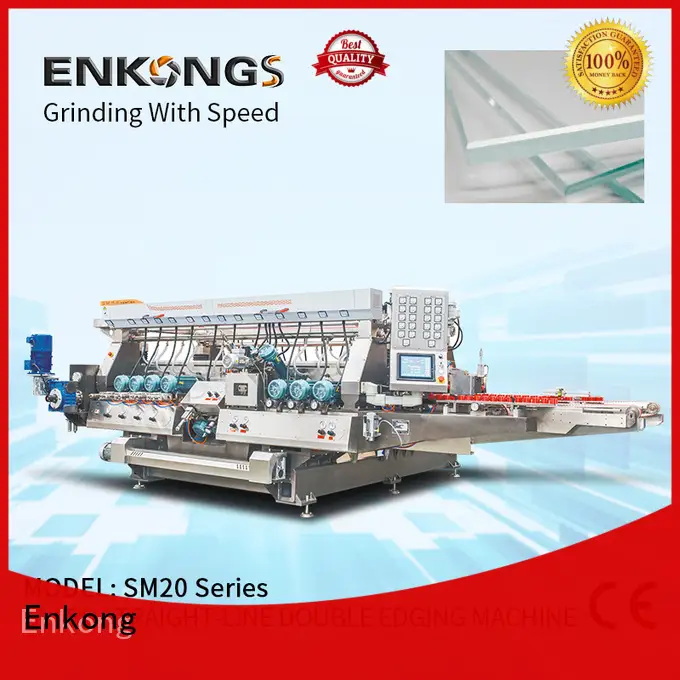

SM 20 adopted auto-polish feeding senor, optimizing polish level.
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
/ Technical Date
Technical Date
◆ Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
◆ Max. glass dimension: Up to 4200
◆ Min. glass size: 300x300 (optional: 250x250)
◆ Glass thickness: 3~25 mm
◆ Working Speed: 0.5-12 8m/mins
◆ Dimension: 7820×1400×2500mm
◆ Width adjustment Speed: 2m/mins (optional:8m/mins)
◆ Max. edge grinding: 1~3 mm
◆Tolerance of the diagonal(1000x1000): ±0.5mm
◆ Tolerance on the parallelism(mm): ±0.3mm
◆Total power: 68 KW
/ producy detials
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
/ Wheels Disposal
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. Enkong is a company integrating developing, designing, sales and service of glass double edging machine.
2. Guangdong Enkong Machinery Co.,Ltd. has advanced testing equipment and a strong R&D team.
3. We always consider high customer satisfaction can help us succeed. We need to guarantee smooth communication between clients and our staff, and consistently attempt to give customers with excellent services and products that are sophisticatedly produced.
