Enkong Glass Machinery specialized in making high-quality glass machine, glass edging machine for global customers.

Enkong SM 22 glass double edger supply for photovoltaic panel processing 1
Enkong SM 22 glass double edger supply for photovoltaic panel processing 2
Enkong SM 22 glass double edger supply for photovoltaic panel processing 3
Enkong SM 22 glass double edger supply for photovoltaic panel processing 4
Enkong SM 22 glass double edger supply for photovoltaic panel processing 5
Enkong SM 22 glass double edger supply for photovoltaic panel processing 6
Enkong SM 22 glass double edger supply for photovoltaic panel processing 1
Enkong SM 22 glass double edger supply for photovoltaic panel processing 2
Enkong SM 22 glass double edger supply for photovoltaic panel processing 3
Enkong SM 22 glass double edger supply for photovoltaic panel processing 4
Enkong SM 22 glass double edger supply for photovoltaic panel processing 5
Enkong SM 22 glass double edger supply for photovoltaic panel processing 6

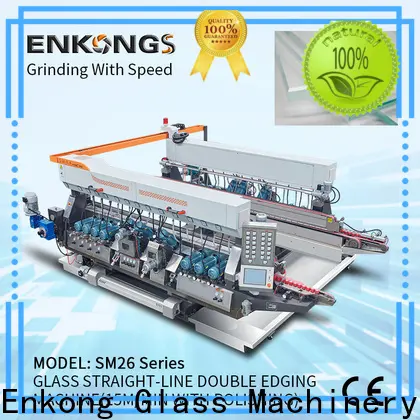

Enkong SM 22 glass double edger supply for photovoltaic panel processing

Brand name:
Enkong
Place of origin:
Guangdong China
Certificate:
CE/ISO(CSA UL certificate can be customized according to customer requirement for the production)
Minimum order:
1 set
Price term:
FOB/CIF/C&F(optional)
Payment terms:
L/C, T/T
Package detail:
package with film
Delivery:
20-45days
Inquiry
Company Advantages
1. The production process of Enkong is well-controlled. From the extraction of raw materials to the mixture, forming, and cutting, every step is highly efficient. We can provide technical support for our products
2. People’s ways of life, industries’ production level, and the economy will get their peaks with the advent of this product. Our products is energy-saving and easy to operate
3. The product is not easy to rust. During the surface treatment, it has undergone the salt mist tests, including neutral salt mist and acid-salt spray. English and Chinese instruction manual are available for our high quality glass machinery
4. It is not affected by the acid condition. It has passed the copper accelerated acetic acid salt spray (CASS) test which aims to check the coated one for corrosion resistance. All of the machines have a warranty of one year
/  Technical Date

SM10 Speedy Series Technical parameter(For Construction glass)

  • Model
    SM2615/25/30/40
  • Thickness
    3--19mm
  • Glass width
    250-1700/300-2700/300-3200/300-4200
  • Transmission speed
    1-15m/min
  • Parallel tolerance
    ≤0.2mm/m
  • Diagonal tolerance
    ≤0.5mm/m
  • Arris width
    1-5mm
  • Max.grinding removal of flat edge for each side
    3mm
  • Width opening speed
    2m/min(≤ 2500mm width);4m/min(≥3000mm width)
  • Transmission speed
    1-18m/min
  • Rotation for motor
    NO.1-NO.3 using 4200rpm/min;NO.4-9 using frequency conversion;No.10-12 using 1400rpm/min.
  • Polishing system
    Cylinder(Standard)/ Automatic pneumatic polishing(Option)
  • Installtion power
    About 65kw
  • Weight
    About 8000kgs/8500kgs/9000kgs/9500kgs
/  General description

SM 26 adopted auto-polish feeding senor, optimizing polish level

undefined
Description

Suitable for high polish demanded products, such as household appliances and furniture.

undefined
Description

Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.


Enkong SM 22 glass double edger supply for photovoltaic panel processing 9


Enkong SM 22 glass double edger supply for photovoltaic panel processing 10


undefined
undefined
undefined
/  Operation Condition

Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃

★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
