Company Advantages1. Enkong is crafted by skillful and experienced workers, with exquisite appearance. Our machines feature high precision and low operating cost
2. The product is so efficient that it is indispensable in many industries to ensure the necessary flexibility of the workflow while being as efficient and productive as possible. Our
glass machinery mainly include
Glass Edging Machine, Glass Washing Machine and Glass Drilling Machine
3. is an economical
glass double edging machine with very low maintenance cost. Our products is energy-saving and easy to operate
4. Surveys show that our glass double edging machine are widely used in field with such properties as . We have perfect after-sale service for our products
5. Comparing with the existing , the proposed glass double edging machine has many advantages, such as. Our machines are simple to install
/ TECHNICAL DATE
Model
SM2615/25/30/40
Thickness
3--19mm
Glass width
250-1700/300-2700/300-3200/300-4200
Transmission speed
1-15m/min
Parallel tolerance
≤0.2mm/m
Diagonal tolerance
≤0.5mm/m
Arris width
1-5mm
Max.grinding removal of flat edge for each side
3mm
Width opening speed
2m/min(≤ 2500mm width);4m/min(≥3000mm width)
Transmission speed
1-18m/min
Rotation for motor
NO.1-NO.3 using 4200rpm/min;NO.4-9 using frequency conversion;No.10-12 using 1400rpm/min.
Polishing system
Cylinder(Standard)/ Automatic pneumatic polishing(Option)
Installtion power
About 65kw
Weight
About 8000kgs/8500kgs/9000kgs/9500kgs
/ GENERAL DESCRIPTION

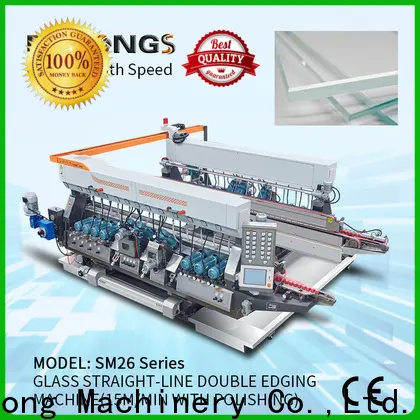

SM 26 adopted auto-polish feeding senor, optimizing polish level, secondary transmission.
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
Operation Condition
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
![Enkong SM 12/08 glass double edging machine for business for household appliances3 7]()
Company Features1. We have experience in manufacturing .
2. Over the years, we have established strategic cooperation with many well-known enterprises in the United States, Canada, and some Asia countries. We have been ceaselessly improving product quality to serve more clients.
3. Enkong's devotion is to offer the most professional customer service which ranks top in glass double edging machine industry. Check it!
