Product Details
Enkong's
glass machinery is processed based on advanced technology. It has excellent performances in the following details.Enkong insists on the use of high-quality materials and advanced technology to manufacture glass machinery. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.
Company Advantages1. Enkong
glass double edging machine is manufactured from the best quality materials that have passed through our strict materials selection system.
2. The product features great hardness. The metal materials used have been carefully heat treated in order to increase the hardness.
3. Trial order is accepted when Guangdong Enkong Machinery Co.,Ltd. has stock of materials.
/ Technical Date

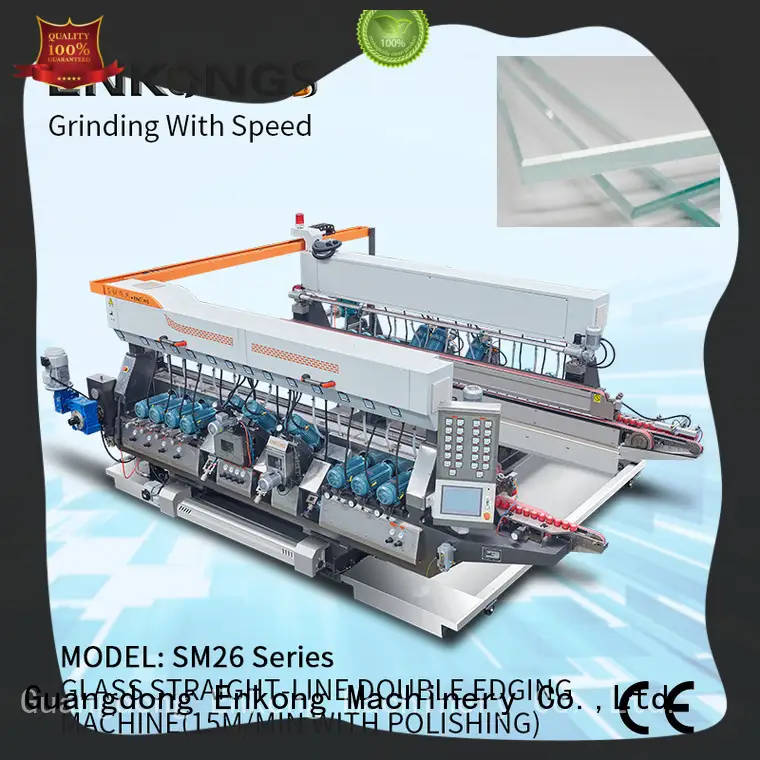

Model
SM2615/25/30/40
Thickness
3--19mm
Glass width
250-1700/300-2700/300-3200/300-4200
Transmission speed
1-15m/min
Parallel tolerance
≤0.2mm/m
Diagonal tolerance
≤0.5mm/m
Arris width
1-5mm
Max.grinding removal of flat edge for each side
3mm
Width opening speed
2m/min(≤ 2500mm width);4m/min(≥3000mm width)
Transmission speed
1-18m/min
Rotation for motor
NO.1-NO.3 using 4200rpm/min;NO.4-9 using frequency conversion;No.10-12 using 1400rpm/min.
Polishing system
Cylinder(Standard)/ Automatic pneumatic polishing(Option)
Installtion power
About 65kw
Weight
About 8000kgs/8500kgs/9000kgs/9500kgs
/ General description
Description
Suitable for high polish demanded products, such as household appliances and furniture.
Description
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
![Enkong modularise design glass double edging machine factory direct supply for round edge processing 10]()
![Enkong modularise design glass double edging machine factory direct supply for round edge processing 11]()
/ Operation Condition
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. Enkong precedes over many other companies which produce glass double edging machine.
2. Our plant boasts a series of sophisticated facilities. These facilities are equipped with advanced technologies, which allows us to manufacture products at the highest level.
3. Our business goal is to help our customers overcome their most complex challenges. We achieve this by turning customer feedback into actions that drive improvements in the way we serve our customers. We think customer satisfaction as core part of our business. We work to exceed our client’s expectations while addressing their needs and providing professional services. We endeavor to be a socially responsible and caring company. From the usage of genuine raw materials and finished products, we guarantee the products are eco-friendly and do no harm to humans.
