Company Advantages1. English and Chinese instruction manual are available for our high quality
glass machinery. Thanks to the unique design of glass double edger, we are proud to present Enkong products to customers all over the world. English and Chinese instruction manual are available for our high quality glass machinery
2. All of the machines have a warranty of one year. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. Our products has high performance in glass processing, Enkong Is Committed To Being One Of The Most Famous Manufacturers Of double edger.
4. The efficiency and costs of this product are optimized and minimized. Our machines are simple to install
5. Enkong and Enkong double edger machine manuals are professionally written by engineers for ease of use. The performance and operation of our products are stable.
/ General description
![undefined]( "undefined")

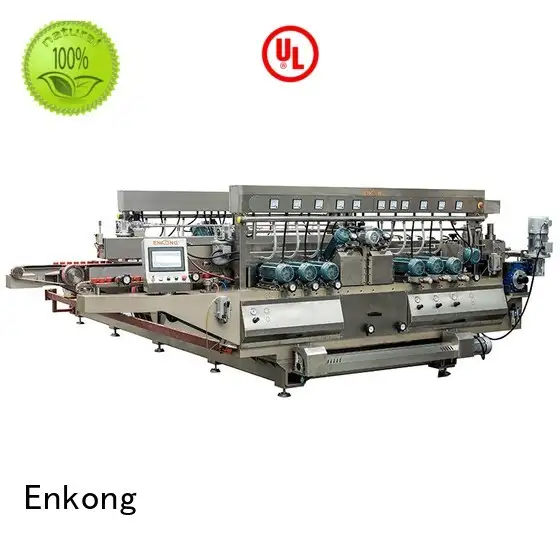

SM 20 adopted auto-polish feeding senor, optimizing polish level.
Suitable for high polish demanded products, such as household appliances and furniture.
Machine body and components especial stable design for low vibration processing and ensure tolerance of the diagonal within 0.1 in 1m^2.
/ Technical Date
Technical Date
◆ Number of Spindles: 20 (optional: 22 spindles with Low E deletion device, Extra-polish, Servo tracking Safety Corner Cutting)
◆ Max. glass dimension: Up to 4200
◆ Min. glass size: 300x300 (optional: 250x250)
◆ Glass thickness: 3~25 mm
◆ Working Speed: 0.5-12 8m/mins
◆ Dimension: 7820×1400×2500mm
◆ Width adjustment Speed: 2m/mins (optional:8m/mins)
◆ Max. edge grinding: 1~3 mm
◆Tolerance of the diagonal(1000x1000): ±0.5mm
◆ Tolerance on the parallelism(mm): ±0.3mm
◆Total power: 68 KW
/ producy detials
Power supply: AC220V, 380V, 415V ±10% 3φ 50Hz/60Hz±2%
Environment: Temperature: 1~40℃
/ Wheels Disposal
★ Products order can be made according to customer’s request. Our company reserves the right to renew and revise as well as cease the technology depending on design requirements.
Company Features1. Guangdong Enkong Machinery Co.,Ltd. has a front-runner status when speaking of double edger.
2. Let Enkong Glass Machinery build and manage a team of professionals for your business.
3. The Core Values of Guangdong Enkong Machinery Co.,Ltd. is creating value for customers. Inquire!
